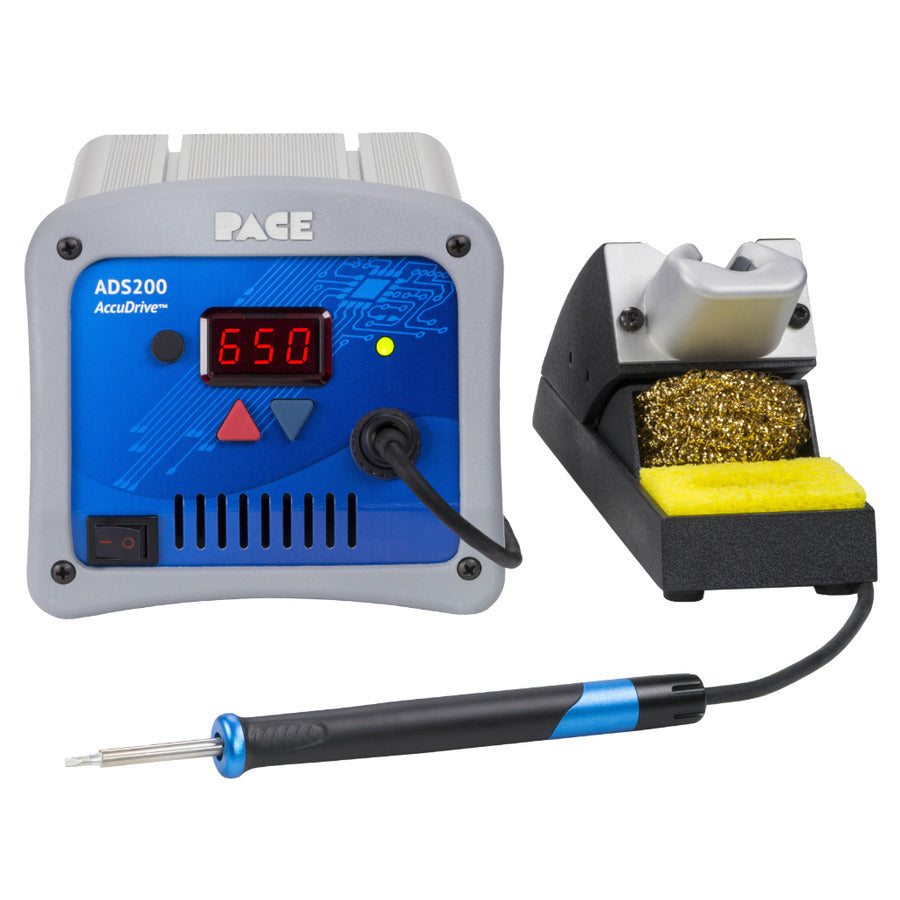

The Pace 8007-0578 is an ESD-Safe ADS200 AccuDrive Soldering Station Set. This set includes the ADS200 (120w) Station, TD-200 Solder Iron (6010-0166-P1) and a Standard Tool Stand (6019-0088-P1). The ADS200 Station features a digital LED Display, an all metal construction and has the ability to solder everything from delicate components (0201) to High Mass applications. This station offers a simple operation, Power On, Set Temperature and Start Soldering. The station comes equipped with three (3) user-definable Temperature Pre-sets, which can be easily scrolled through via the "Up/Down" Buttons on the face of the station. The ADS200 AccuDrive™ system provides absolute temperature accuracy, eliminating the need for routine and costly calibration.

The 8007-0578 System includes the TD-200 Solder Iron. This iron offers sleek dimensions and a comfortable ergonomic handle, that stays cool for the operators hands, even during extensive use. The TD-200 provides accurate tip temperature, as well as, instant heat-up and recovery. This iron offers high-capacity heating (up to 120w of power) and is designed with an ultra short tip-to-grip [under 1.9" (48mm) L) for precision operator dexterity. The TD-200 is compatible with the AccuDrive "Blue Series" Solder Tip Heat Cartridges (1130 & 1131 Series).

Pace 8007-0578 ADS200 AccuDrive High Powered Soldering Station Highlights:

• 120 watt output
• Digital LED display
• Tips sold separately
• Rugged, all metal construction
• Storage for 3 user definable temperature presets
• Simple operation - power on, set temperature with arrow keys
• Compatible with two series of tips:Blue series - StandardBlue series - Ultra
• Iron stays cool and comfortable to hold, even during extended production use
• Works safely on 0201's, sensitive flex circuits or the highest mass, lead-free PCBs

Pace 8007-0578 ADS200 AccuDrive High Powered Soldering Station Specs:

• Brand: Pace
• SKU: 8007-0578
• RoHS Compliant: Yes
• Control Technology: AccuDrive
• Meets or Exceeds ANSI/J-STD-001: Yes
• Meets or Exceeds ANSI/ESD S20.20: Yes
• Tip-to-Ground Resistance: 2 Ohms or less
• Temperature Range: 193-454°C (380-850°F)
• Tips: Uses AccuDrive Blue Series Tip-Heater Cartridges
• Dimensions: 104mm (4.1") H x 130mm (5.1") W x 152mm (6") D
• Soldering Iron: TD-200 AccuDrive Tip-Heater Cartridge Soldering Iron
• Temperature Accuracy: Meets or Exceeds ANSI/J-STD-001 Requirements
• Tool Stand: Can hold up to 7 tips, comes standard with sponge, stay-moist well and brass wool to clean oxidation from tip
• Tested using ANSI/ESD S13.1-2015: Yes. Tested up to 50MHz using S13.1-2015 Method. Meets or Exceeds J-STD-001 and ESD S20.20 Requirements
• Optional Instant SetBack (ISB) Tool Stand: Optionally available as P/N 6019-0089-P1 or standard as part of ADS200 Stations P/N 8007-0579 or P/N 8007-0581
