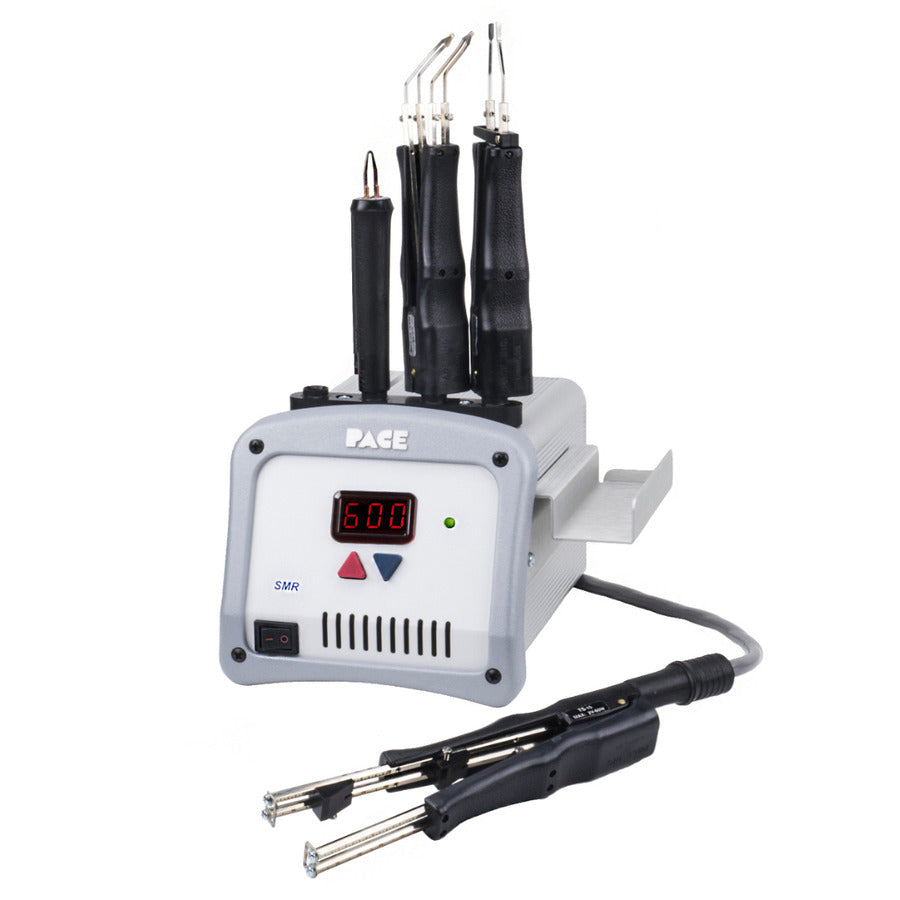

The Pace 8007-0565 SMR features a Pulse Heat power output which provides controlled temperature ramp-up to reflow temperatures, reducing thermal shock risk and unwanted heating of adjacent solder joints. The system can be used for the removal and installation of small SMD's, thermal wire stripping, resistance soldering of wires to connector cups, lap repairs for conductors and traces and removal of conformal coatings. The SMR system comes standard with PACE's TS-15 StripTweez Handpiece (see image at left) for thermally stripping wires.

Pace 8007-0565 SMR Multi-Function Pulse-Heat Rework Station Highlights:

• Adjustable power level from 1 - 20 (20 being maximum power)
• Clear LCD display with functional soft-keys to perform operations
• Small & Compact size allows SMR to fit in areas with limited bench space
• An approved operating range can be programmed allowing operators flexibility to do their work
• Universal Power Cord allows cordless, pulse-powered Handpieces to operate from a single quick-connect cord
• All Handpieces are cordless and rapidly attach to Universal Power Cord - switching from one Handpiece to another takes less than 2 seconds

Pace 8007-0565 SMR Multi-Function Pulse-Heat Rework Station Specs:

• Brand: Pace
• SKU: 8007-0565
• Length: 6 in
• Width: 5.1 in
• Height: 4.1 in
• Power Rating: 1 - 20 W
• Voltage Rating: 115V ac
• Dimensions: 6 L x 5.1 W x 4.1 Hin
• Product Type: Pulse Heat Rework System
• Includes: Thermal Stripper Tips, Thermal Stripper Tips 24 - 18 GA, Universal Power Cord, TS-15 Striptweez Handpiece
