The Pace ThermoBond kit is used to repair damaged pads, lands, traces and other circuitry on printed circuit boards. Soldering iron tips are included and used to heat stake the various types of ThermoBond materials. There are four types of kits available: SMT, Thru-Hole, Combination and Edge Connector.

SMT Kit Consists of:

• Cutting tools and supplies
• Chip Resistor/Capacitor
• Inductors, MELFs, Tantalum Capacitors
• SOTs
• SOICs, TSOPs
• PLCCs, LCCCs, SOJs, Ceramic QFPs

Thru-Hole Consists of:

• Cutting tools and supplies
• Straight Run Frame
• Fine Traces Frame
• Variety Frame
• Lap/Trace Frames (tin plated on both sides)
• Eyelets and Funnelets
• Track Pad

SMT/Thru-Hole Consists of:

• Cutting tools and supplies
• Chip Resistor/Capacitor
• SOICs, TSOPs
• PLCCs, LCCCs, SOJs, Ceramic QFPs
• Straight Run Frame
• Fine Traces Frame
• Lap/Trace Frames (tin plated on both sides)
• Track Pad

Edge Connector Consists of:

• Cutting tools and supplies
• Edge Connector Frame
• Lap/Trace Frame
• Straight Run Frame

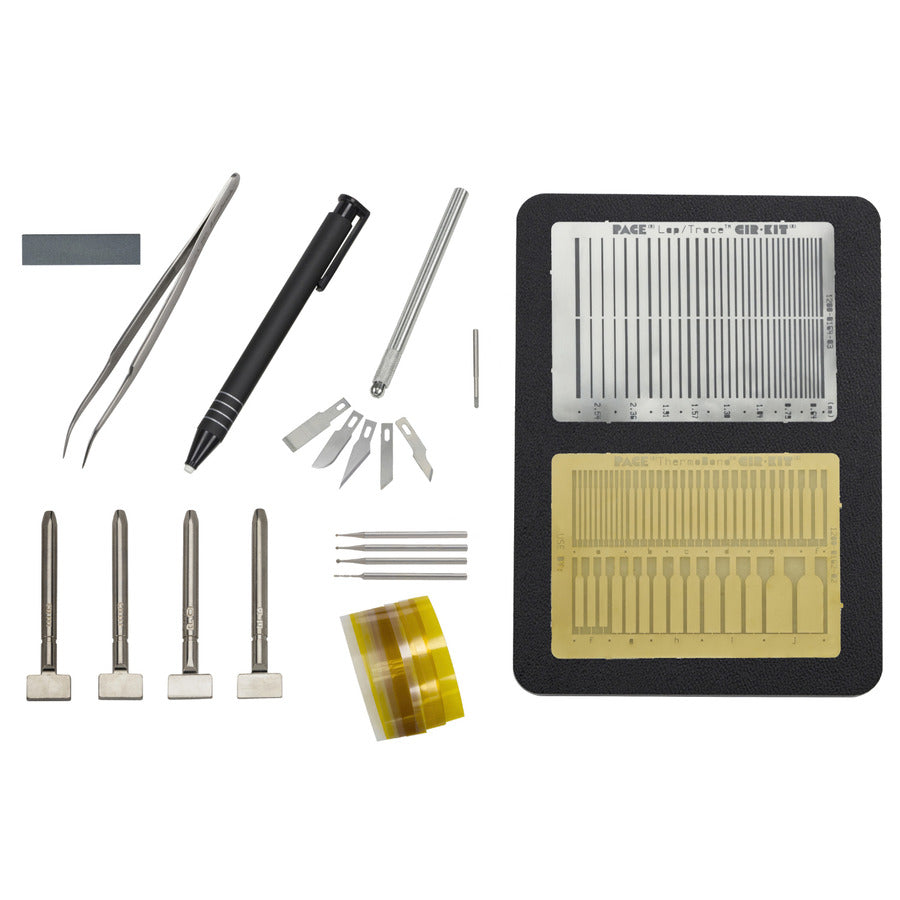

Pace 6993-0182 Edge Connector Repair Kit Thermobond Cir-Kit Specs:

• Brand: Pace
• SKU: 6993-0182
• Frame Material: 1 oz copper foil
• Dry Film Adhesive: .04mm Thick (0.0015" Thick)
• Protective Backing: .08mm Thick (0.003" Thick)
• Bonding Time: 15 Seconds
• Binding Temperature: 315°C (600°F) nominal
• Eyelets: Over 25 different Thru-Hole Eyelet sizes are available
• Tin/Lead Plating: All ThermoBond frames come standard with 0.025mm (0.001") 60/40 Tin Lead plating on one side. Non-Stocking Item. May Require Additional Time To Ship.
