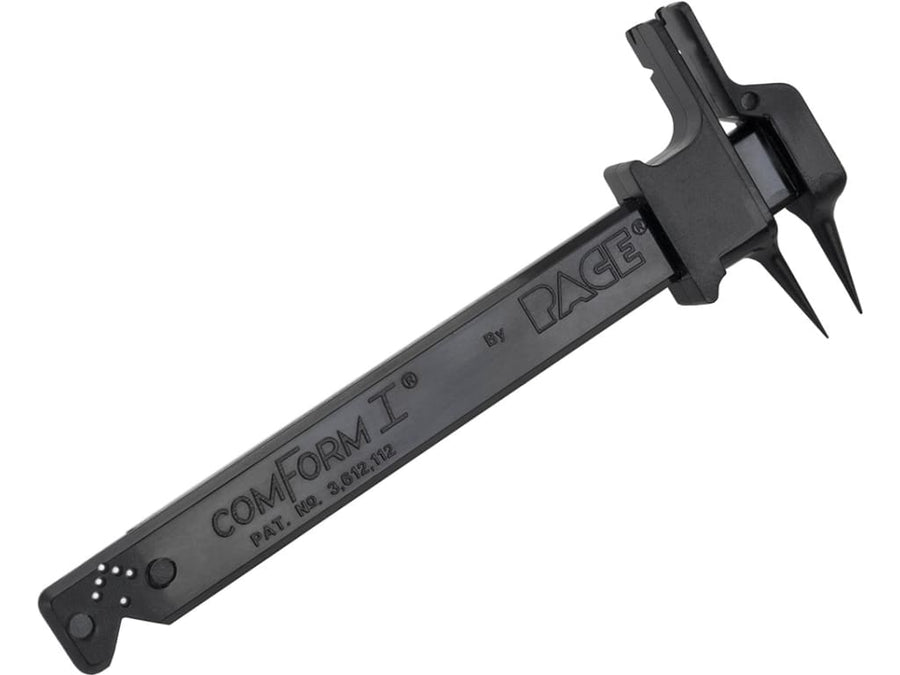

The Pace 6016-0003-P1 is the ESD-Safe ComForm 1 Component Forming and Lead Bending Tool. This calibrated scale allows for the user to measure the approximate sizes of components and approximate distances "Point-To-Point". The point-to-point distance measuring scale increases in increments of 1/10" and/or 1mm. The 6016-0003-P1 has many uses including measuring "Hole-To-Hole" spacing and measuring components sizes. The lead bending feature of this tool allows a user to form stress relief loops, leads for a vertical mount, forming 90° bends and forming transistor leads. The 6016-0003-P1 is equipped with a locking screw for lead forming with consistent repeatability.

Pace 6016-0003-P1 ComForm 1 Forming Tool Highlights:

• Bends all sizes and shapes of axial lead components for horizontal or vertical mounting
• Resistor and axial component lead bender makes accurate bends on axial component leads and eliminates stress at the component/lead junction
• Accurately measures hole-to-hole spacing on PCBs
• Measures the approximate size of components and approximate distances point to point in 1/10" and/or 1mm increments
• Forms stress relief loops
• Prevents stresses at lead seals
• Straightens transistor and other component leads
• Caliper measures to 1/10" accuracy
• Assures proper lead bend radii
• Gauges component lead lengths for proper trimming
• Clinches component leads with non-marring edge
• Non-metallic construction will not damage circuits, leads or plated-thru holes

Pace 6016-0003-P1 ComForm 1 Forming Tool Specs:

• Brand: Pace
• SKU: 6016-0003-P1
• Product Type: Caliper Lead Component Forming Tool
