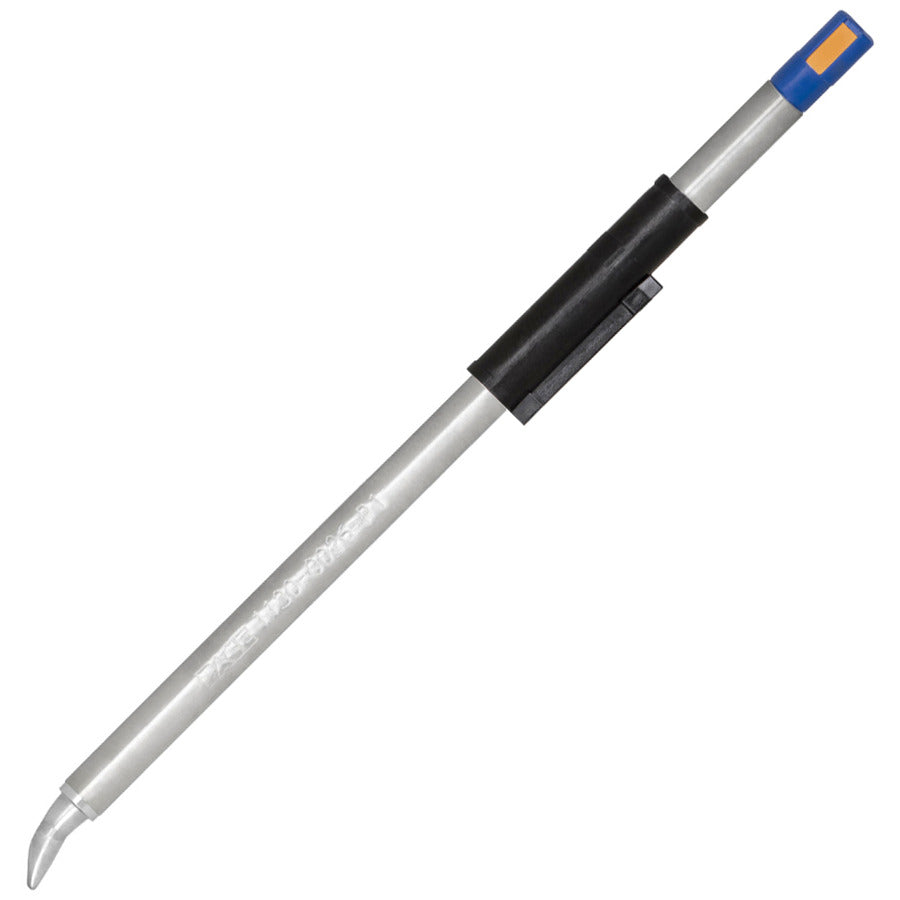

The Pace 1130-0026-P1 is a TD-200 Blue Series solder tip for AccuDrive Stations. Blue Series Tip-Heater Cartridges combine a high-accuracy sensor and robust heater, delivering up to 120 Watts of power in one integrated cartridge. Unlike curie point systems, you can select any temperature you want from 380°F/193°C to 850°F/454°C without changing the cartridge – one tip, any temperature. The quick-change cartridges can be instantly swapped while hot, and achieve set temperatures in seconds. The 1/16" (1.59mm) 30° Bent Chisel soldering tip is a standard fit for the TD200 (6010-0166-P1) hand-piece. The "Blue Series" Tip-cartridges are designed for superior heat transfer and delivery. This allows the operator to work at safer, low temperatures reducing the risk of damage to PCB's, while improving the life of the tip. The 1130 Series Tip-Cartridges offer upto 120w of power delivery and features a working temperature range between 380-850°F (193-454°C).

Pace 1130-0026-P1 30° Standard Bent Chisel Soldering Tip Highlights:

• High capacity integrated heater delivers up to 120 Watts of pure power
• Select any temperature for a chosen tip cartridge without having to buy additional ones
• Hot-swappable quick-change tips fast & easy change-out withing 2 seconds, without turning the unit off
• Accurate, honest temperatures consistant, accurate tip temperatures meet or exceed J-STD-001 requirements
• Superior heat transfer/delivery allows for safer, lower temperatures, reduces risk of PCB damage, improves tip life
• Inexpensive cartridges less than half the price of most cartridge style or curie point tips, delivers lowest cost of ownership

Pace 1130-0026-P1 30° Standard Bent Chisel Soldering Tip Specs:

• Brand: Pace
• SKU: 1130-0026-P1
• Series: TD-200 Blue
• Tip Size: 1/16" (1.59mm)
• Product type: Soldering tip
• Lead-Free Solder Compatible: Yes
• Tip Shape: Bent Chisel Soldering Tip
• For use with: AccuDrive Soldering Stations and TD-200 Soldering Iron
