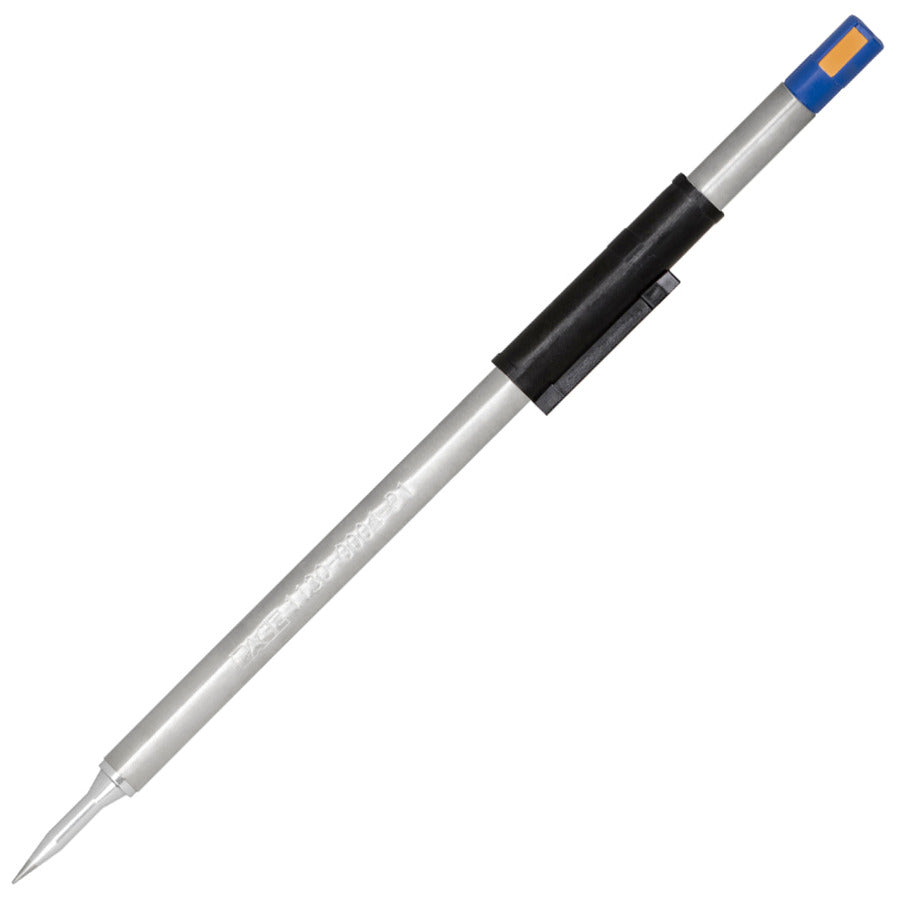

The Pace 1130-0004-P1 is a TD-200 Blue Series solder tip for AccuDrive Stations. Blue Series Tip-Heater Cartridges combine a high-accuracy sensor and robust heater, delivering up to 120 Watts of power in one integrated cartridge. Unlike curie point systems, you can select any temperature you want from 380°F/193°C to 850°F/454°C without changing the cartridge – one tip, any temperature. The quick-change cartridges can be instantly swapped while hot, and achieve set temperatures in seconds. The 1/64" (0.4mm) Extended, Sharp Conical soldering tip is a standard fit for the TD200 (6010-0166-P1) hand-piece. The "Blue Series" Tip-Cartridges are designed for superior heat transfer and delivery. This allows the operator to work at safer, low temperatures reducing the risk of damage to PCB's, while improving the life of the tip. The 1130 Series Tip-Cartridges offer upto 120w of power delivery and features a working temperature range between 380-850°F (193-454°C).

Pace 1130-0004-P1 Extended Sharp Conical Soldering Tip Highlights:

• High capacity integrated heater delivers up to 120 Watts of pure power
• For delicate micro-soldering to challenging, high thermal mass applications
• Select any temperature for a chosen tip cartridge without having to buy additional ones
• Hot-Swappable quick-change tips for fast & easy change-out within 2 seconds, without turning the unit off
• Accurate, honest temperatures consistant, accurate tip temperatures meet or exceed J-STD-001 requirements
• Superior heat transfer/delivery allows for safer, lower temperatures, reduces risk of PCB damage, improves tip life
• Inexpensive cartridges less than half the price of most cartridge style or curie point tips, delivers lowest cost of ownership

Pace 1130-0004-P1 Extended Sharp Conical Soldering Tip Specs:

• Brand: Pace
• SKU: 1130-0004-P1
• Series: TD-200 Blue
• Tip Shape: Conical sharp
• Tip Size: 1/64" (0.40mm)
• Product Type: Soldering Tip
• Lead Free Solder Compatible: Yes
• For use with: AccuDrive Soldering Stations and TD-200 Soldering Iron
