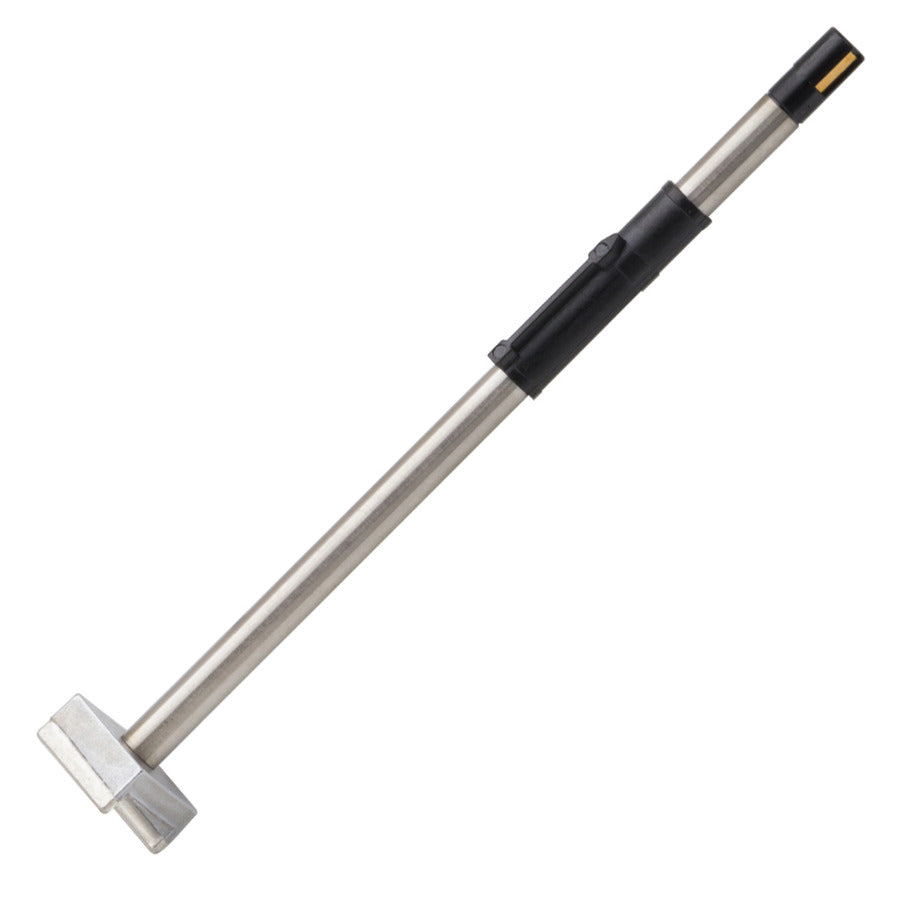

The Pace 1124-0505-P1 is a 1124 Series, Reflow Solder Tip for removal of SOIC 20 Components. This tip measures (Side A =) .377" (9.6mm) x (Side B =) .535" (13.6mm). The 1124 Series is compatible with the TD-100 (Discontinued) and the TD-100A Solder Iron. Removal Tip-Heater Cartridge soldering tip used with the Pace TD-100 soldering handpiece. The Tip-Heater Cartridge technology provides instantaneous load sensing and on demand power to quickly respond providing adequate power to meet the demand of the work being soldered. The SOIC-20 SMT Removal Soldering Tip features a specific design to facilitate the efficient and precise desoldering of integrated circuits with a 20-pin Small Outline package. The Small Outline Integrated Circuit is a common type of surface-mount device used in various electronic applications.

Pace 1124-0505-P1 SOIC-20 SMT Removal Soldering Tip Highlights:

• Pace TD-100 SMT removal tips
• For use with PACE TD-100 & TD-100A Soldering Irons only (IntelliHeat-compatible)
• Designed to be used with soldering stations that support SOIC-20 SMT removal tips
• Specifically engineered for SOIC-20 packages, ensuring a precise fit and effective soldering performance
• Tailored for the removal of surface-mount components, allowing for efficient and precise desoldering processes
• The tip's design is optimized for the 20-pin Small Outline Integrated Circuit (SOIC) package, commonly used in various electronic devices
• The tip is crafted to provide precision and control during the desoldering process, minimizing the risk of damage to surrounding components

Pace 1124-0505-P1 SOIC-20 SMT Removal Soldering Tip Specs:

• Brand: Pace
• SKU: 1124-0505-P1
• Tip Width: 0.377 in
• SMT Type: SOIC-20
• Tip Length: 0.535 in
• Type: Surface Mount
• Tip Style: Box Type Parallel
• Product Type: Soldering Tip
• For Use With: TD-100 Handpiece
• Lead Free Solder Compatible: Yes
• Dimensions: 9.6mm x 13.6mm / 0.377 in x 0.535 in
