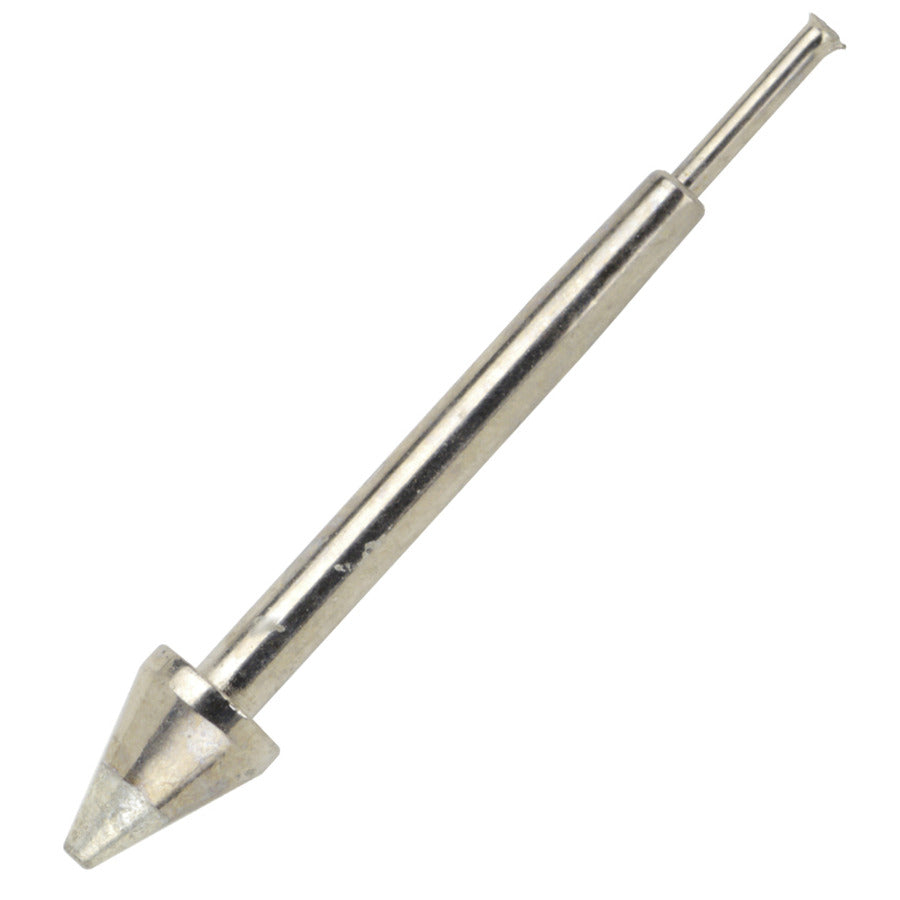

The Pace 1121-0938-P5 is a 1121 Series, ThermoMax Desolder Tip with an Extended Reach. These tips are designed for the SX-100 Sodr-X-Tractor Desolder Iron Hand-Piece. ThermoMax Tips are designed for the effective removal of through-hole solder joints. They have more "mass" than the Standard Thermo-Drive Tips, for heavy-duty applications. The 1121-0938 offers a 3/16" diameter tip shank & measures with a .030" (.76mm) Inner Diameter (ID) x .075" (1.91mm) Outer Diameter (OD). Featuring Thermo Max technology, this desoldering tip ensures efficient heat transfer, allowing for quick and precise removal of solder from electronic components. The conical shape of the tip provides enhanced control and accuracy, making it suitable for intricate desoldering tasks where precision is crucial.

Pace 1121-0938-P5 Endura Thermo Max Conical Desoldering Tip Highlights:

• For use with PACE SX-100 Desoldering Handpiece
• ThermoMax tips are designed for effective removal of through-hole solder joints
• The ID of the tip should be slightly larger than the OD of the pin being desoldered
• They have more "mass" than the standard ThermoDrive tips for heavy applications
• For use in the SX-70 and SX-80 heaters (6010-0107) with a date code of 0107 or earlier
• Utilizes Thermo Max technology for efficient heat transfer, ensuring quick and effective desoldering
• The Inside Diameter (I.D.) of the tip must be large enough to fit over the lead, while providing sufficient room so that air and solder can be drawn through the tip
• The Outside Diameter (O.D.) of the tip must be slightly smaller than the diameter of the pad to prevent tip contact to the board laminate and minimize the possibility of damage

Pace 1121-0938-P5 Endura Thermo Max Conical Desoldering Tip Specs:

• Brand: Pace
• SKU: 1121-0938-P5
• Shape : Conical
• Tip Size: 0.76 mm
• Inside Dimension: .030 in
• Outside Diameter: .075 in
• Product Type: Desoldering Tip
• Lead Free Solder Compatible: Yes
• For Use With: SX-70 Heaters, SX-80 Heaters
