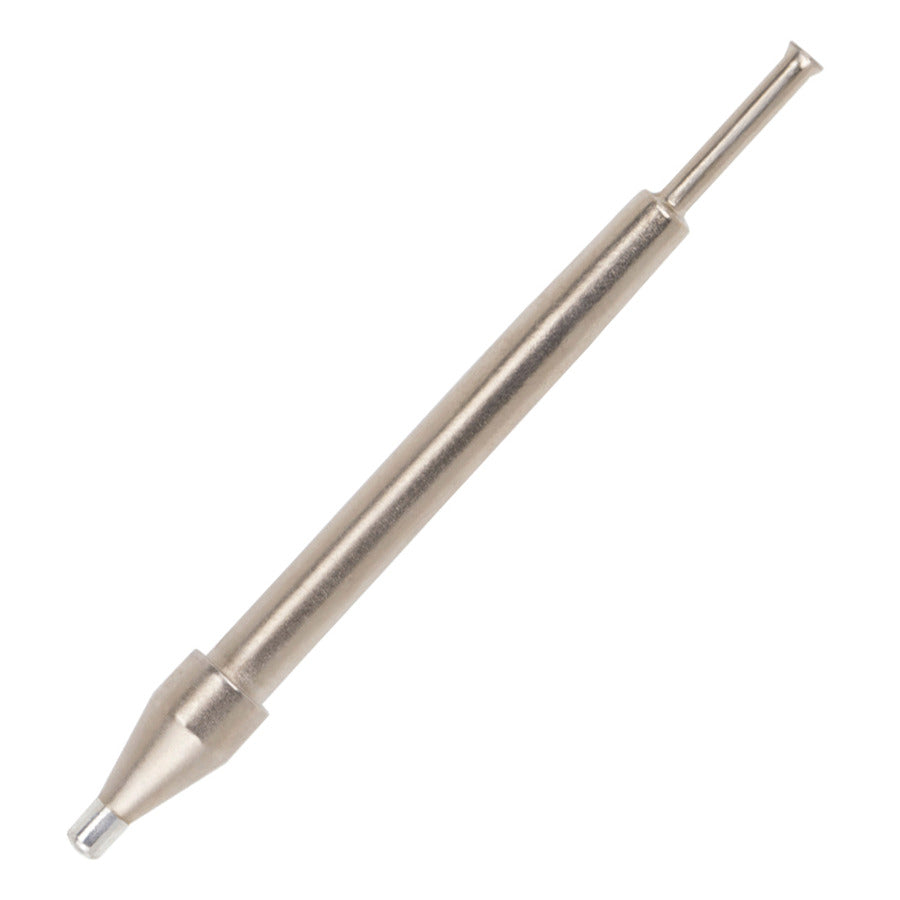

The Pace 1121-0935-P5 is a 1121 Series, ThermoDrive Desolder Tip with an Extended Reach. These tips are designed for the SX-100 Sodr-X-Tractor Desolder Iron Hand-Piece. ThermoDrive Tips are ideal for the effective removal of through-hole solder joints. The 1121-0935 offers a 3/16" diameter tip shank & measures with a .030" (.78mm) Inner Diameter (ID) x .09" (2.29mm) Outer Diameter (OD). This specialized desoldering tip is an integral component of the Pace Thermo-Drive Desoldering Systems, known for their efficiency and reliability. The extended reach feature of this desoldering tip allows for access to hard-to-reach areas on electronic circuit boards, ensuring thorough and precise desoldering. The Thermo-Drive technology employed in this tip enables quick and efficient heat transfer, ensuring optimal performance during the desoldering process.

Pace 1121-0935-P5 Extended Reach Thermo-Drive Desoldering Tip Highlights:

• For use with Pace SX-100 Desoldering Handpiece
• ThermoDrive tips are designed for effective removal of through-hole solder joints
• The ID of the tip should be slightly larger than the OD of the pin being desoldered
• The Inside Diameter (I.D.) of the tip must be large enough to fit over the lead, while providing sufficient room so that air and solder can be drawn through the tip
• With its extended reach design, this tip is ideal for working on hard-to-reach areas or tight spaces, such as through-hole components or densely packed circuit boards
• The Thermo-Drive technology used in this tip ensures fast heat transfer and precise temperature control, making it easy to work with a wide range of soldering material
• The Outside Diameter (O.D.) of the tip must be slightly smaller than the diameter of the pad to prevent tip contact to the board laminate and minimize the possibility of damage

Pace 1121-0935-P5 Extended Reach Thermo-Drive Desoldering Tip Specs:

• Brand: Pace
• SKU: 1121-0935-P5
• Series: SX
• Inside Diameter: 0.030 in
• Outside Diameter: 0.090 in
• Tip Shape: Extended Reach
• Tip Size: 0.03 ID x 0.09 ODin
• Product Type: Desoldering Tip
• Lead Free Solder Compatible: Yes
• For Use With: SX-100 Heaters, SX-90 Heaters
