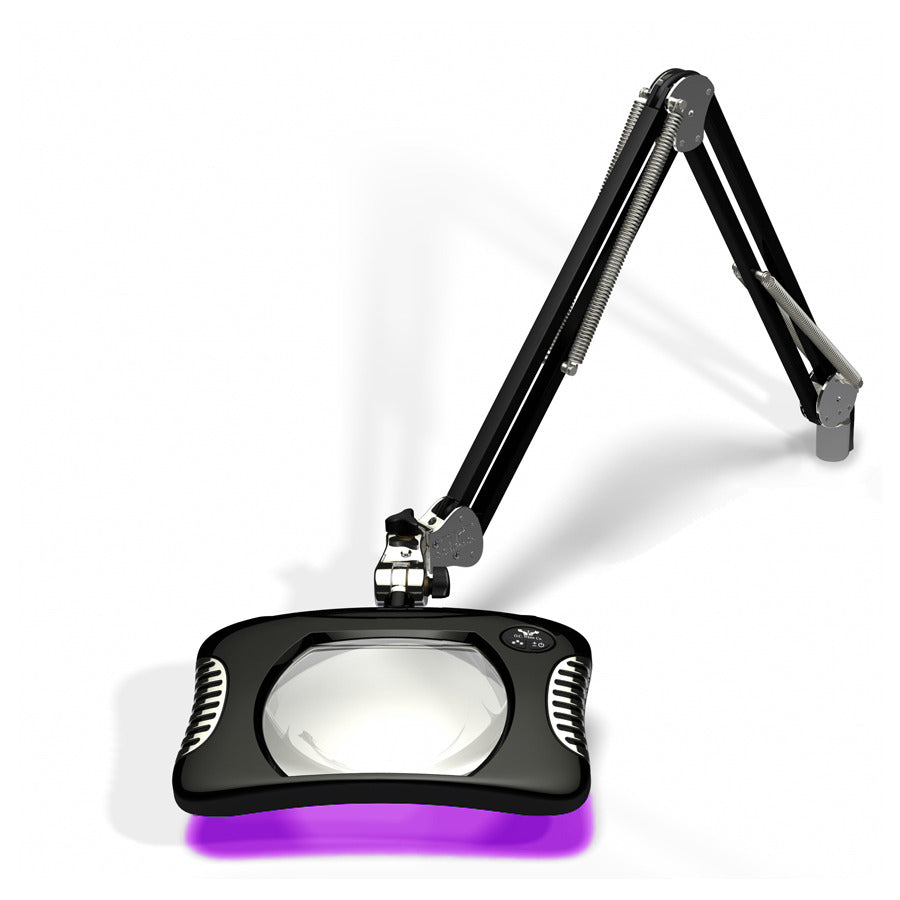

The O.C. White 824004UVB 4 Diopter (2x), 7 x 5.25 in. Rectangular Green-Lite Combination Ultraviolet/Visible LED Magnifier with 43 in. Arm, Table Edge Clamp (Carbon Black) is an energy efficient, high output, and long lasting inspection magnifier. With 4 diopter (2x) magnification and advanced lighting controls, the magnifier provides immediate improvements in productivity and quality control inspection. It is equipped with crown white glass, which yields crystal clear resolution and superb color rendition during inspection.

The combination UV/visible LED magnifier features 8 ultraviolet LEDs (395nm) paired with 4 white LEDs, consuming only 8W overall on the highest setting. The magnifier can operate in multiple modes: Ultraviolet only, White light only, or Ultraviolet with White light. The addition of UV LEDs makes the magnifier an excellent tool for conformal coating inspection, gem identification, dye penetrant crack inspection, and more.

The O.C. White 82400-4-UV-B 4 Diopter (2x) Rectangular Green-Lite Combination Ultraviolet/Visible LED Magnifier has a specialized rugged membrane switch, which controls all aspects of lighting. Features include 100-5% dimming, 3-bank LED adjustability, 5 specialized contrast lit views, integrated shut-off timer for energy savings, and light memory - complete control is at your fingertips. This multifunction membrane switch is also back-lit for increased visibility in dark installation areas.

The O.C. White 82400-4-UV-B 4 Diopter (2x) Rectangular Green-Lite Combination Ultraviolet/Visible LED Magnifier is built with a 100-240V (50/60hz) auto switching transformer for worldwide use, allowing companies with international manufacturing sites to easily standardize their visual inspection. The industrial grade die-cast aluminum shade doubles as a heat-sink, providing long LED life and comfortable handles for maneuverability. The heavy-duty arm features an extruded aluminum design for ultimate precision and holding power.

O.C. White 82400-4-UV-B Green-Lite ESD-Safe Combination UV LED Magnifier Highlights:

Lighting Features:

• Specialized Ultraviolet/Visible Light LED combination with 8 UV LEDs (395nm) and 4 White LEDs
• Easily switch from UV-left, UV-right, White only and UV with White light
• User-controlled LED groups shine desired level of light exactly where required
• Superb 100-5% dimming via convenient, reliable membrane switch
• LED technology reduces glare, energy consumption, and heat
• Multi-angle LEDs provide shadowless lighting at full range of focal lengths and heights

Optical Features:

• Precision ground, 7" x 5.25" rectangular optical grade glass
  4 diopter (2x) optical power for ideal balance of magnification and working distance
  Excellent lens clarity and high image resolution
  Excellent for conformal coating inspection, gem identification, dye penetrant crack inspection, and more

Electrical Features:

• Low voltage (15-24V) power supply is auto-switchable with worldwide approvals
• 12 LED array consumes only 8W on highest setting
• Auto shut off after 4 hours helps prevent energy waste

Mechanical Features:

• Die-cast aluminum shade and all metal arm components for ESD safety
• Heat sinks on shade ensure long LED life and easy maneuverability
• Innovative 3-axis adjustable swivel arm has high holding power at any angle
• 43 in. arm provides plenty of reach for the widest range of inspection

O.C. White 82400-4-UV-B Green-Lite ESD-Safe Combination UV LED Magnifier Specs:

• Brand: O.C. White
• SKU: 82400-4-UV-B
• Product Type: Visible Led Magnifier
• Diopter: 4
• Lens Shape: Rectangular
• Light Source: LED
• Power Rating: 8W
• Lens Dimensions: 7 x 5.25in
• Color: Carbon Black
• ESD Safe: Yes
• Lens Width: 5.25in
• Lens Length: 7in
