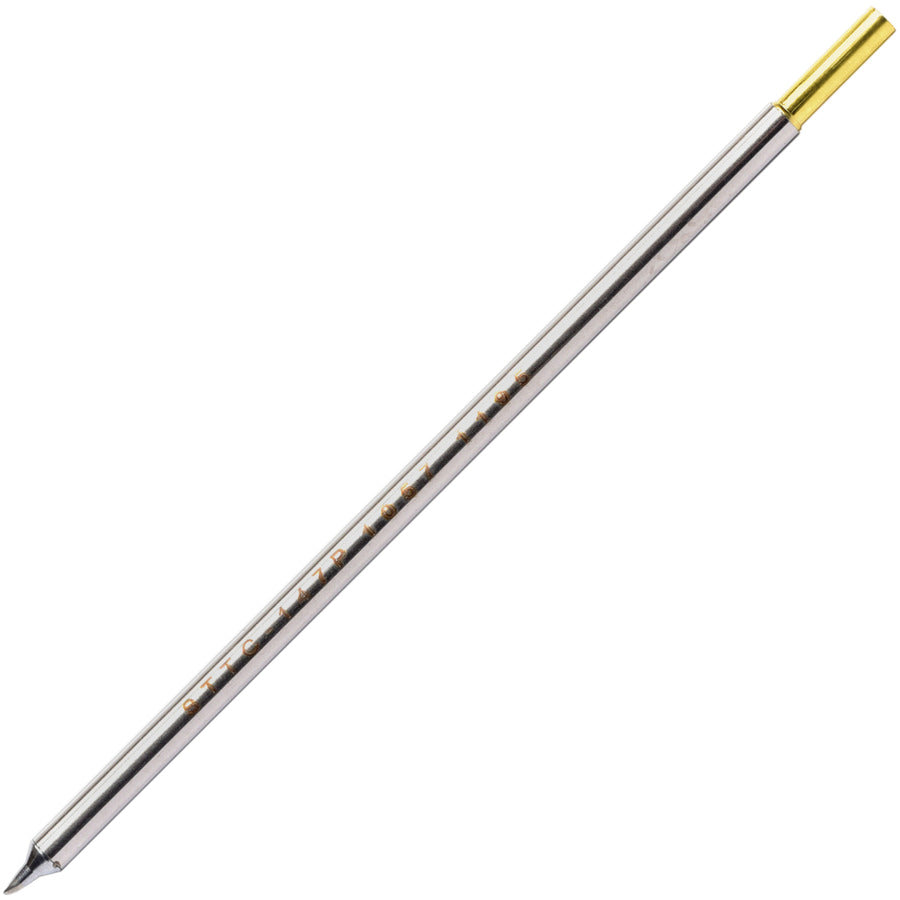

The STTC-147P is a SMT Blade Cartridge Tip. The STTC-147P has a maximum temperature of 700°F and is designed for the MX-Series Soldering Station. The STTC-147P is compatible with the MX-500 and MX-5000 & MX-5200 Systems and with the MX-RM3E and MX-H1-AV Solder Iron Hand-pieces. 700 Series for most standard applications. STTC Cartridges provide a wide range of options for through-hole and SMD Rework. The STTC-145P features a conical shape, providing users with precision and control during soldering applications. The power conical design ensures efficient heat transfer and uniform temperature distribution, enabling precise soldering on a variety of electronic components. This cartridge tip is specifically engineered to meet the demands of professional soldering tasks, making it ideal for electronic assembly, repair, and rework applications.

Metcal STTC-147P STTC 700 Series 60° Power Beveled Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C
• The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx

Metcal STTC-147P STTC 700 Series 60° Power Beveled Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-147P
• Series: STTC
• Tip Angle: 60°
• Tip Size: 0.07 in
• Tip Shape: Bevel
• Tip Length: 0.25 in
• Tip Width: 1.78 mm (0.07")
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• Lead Free Solder Compatible: Yes
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
