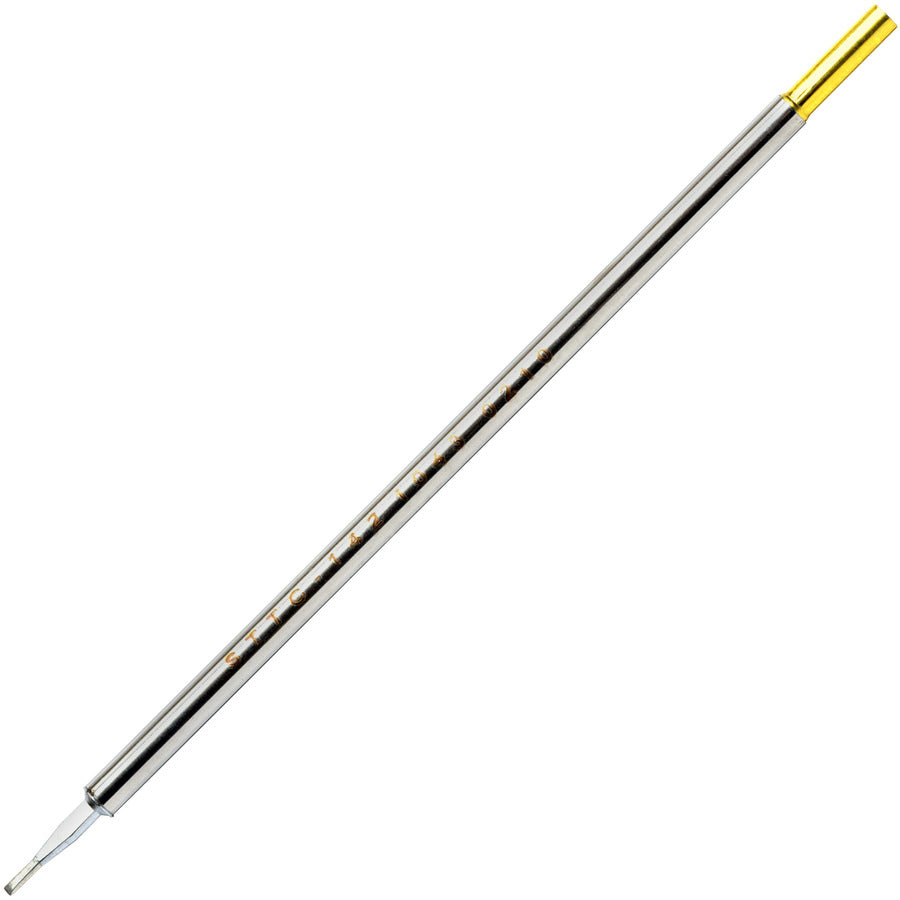

The Metcal STTC-142 is a SMT Blade Cartridge Tip. The STTC-142 has a maximum temperature of 700°F and is designed for the MX-Series Soldering Station. The STTC-142 is compatible with the MX-RM3E and/or MX-H1-AV Solder Iron Hand Pieces. The Long Reach Chisel design provides extended reach and accessibility, making it particularly useful for tasks requiring intricate work or access to hard-to-reach areas. This cartridge-style soldering tip ensures easy replacement, minimizing downtime and allowing for efficient soldering processes. Compatible with the Metcal MX Series System, the STTC-142 boasts advanced technology and reliable construction. It delivers optimal heat transfer, ensuring consistent and precise soldering results. Whether you are working on electronic components, circuit boards, or other delicate soldering projects

Metcal STTC-142 STTC 700 Series Long Reach Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C
• The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx

Metcal STTC-142 STTC 700 Series Long Reach Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-142
• Series: STTC
• Tip Angle: 60°
• Tip Size: 0.07 in
• Tip Shape: Chisel
• Tip Length: 0.63 in
• Tip Width: 1.78 mm (0.07")
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
