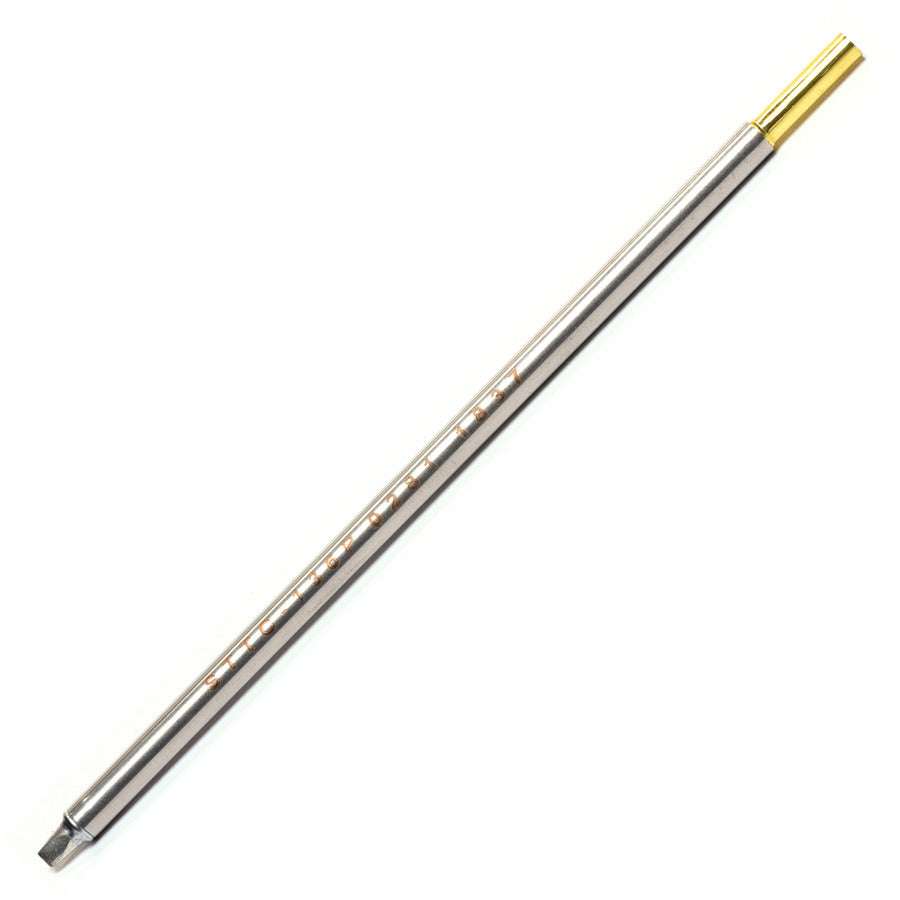

The Metcal STTC-136P is a SMT Blade Cartridge Tip. The STTC-136P has a maximum temperature of 700°F and is designed for the MX-Series Soldering Station. This tip has been optimized for the best possible thermal performance. The STTC-136P is compatible with the MX-RM3E and/or MX-H1-AV Solder Iron Hand Pieces. The 30° Chisel Cartridge shape offers versatility, making it suitable for various soldering tasks. The added power feature enhances the tip's performance, providing quicker heat transfer and ensuring a more efficient soldering process. This makes the STTC-136P an ideal choice for professionals and enthusiasts working on intricate electronics, circuit boards, or other precision soldering projects. Crafted with high-quality materials, this soldering tip delivers reliable and consistent results. Its cartridge-style design facilitates easy replacement, minimizing downtime during soldering tasks.

Metcal STTC-136P STTC 700 Series 30° Power Chisel Cartridge Soldering Tip Highlights:

• Use with leaded and lead-free solder
• The 600-series for light load or low temperature applications
• Metcal recommends the 700-series for the majority of applications
• 800-series for high temperature and thermally demanding applications
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• STTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330°C, 700-series nominally 390°C and 800-series nominally 450°C
• The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx

Metcal STTC-136P STTC 700 Series 30° Power Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-136P
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.1 in
• Tip Shape: Chisel
• Tip Length: 0.24 in
• Tip Width: 2.5 mm (0.1")
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• Lead Free Solder Compatible: Yes
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
