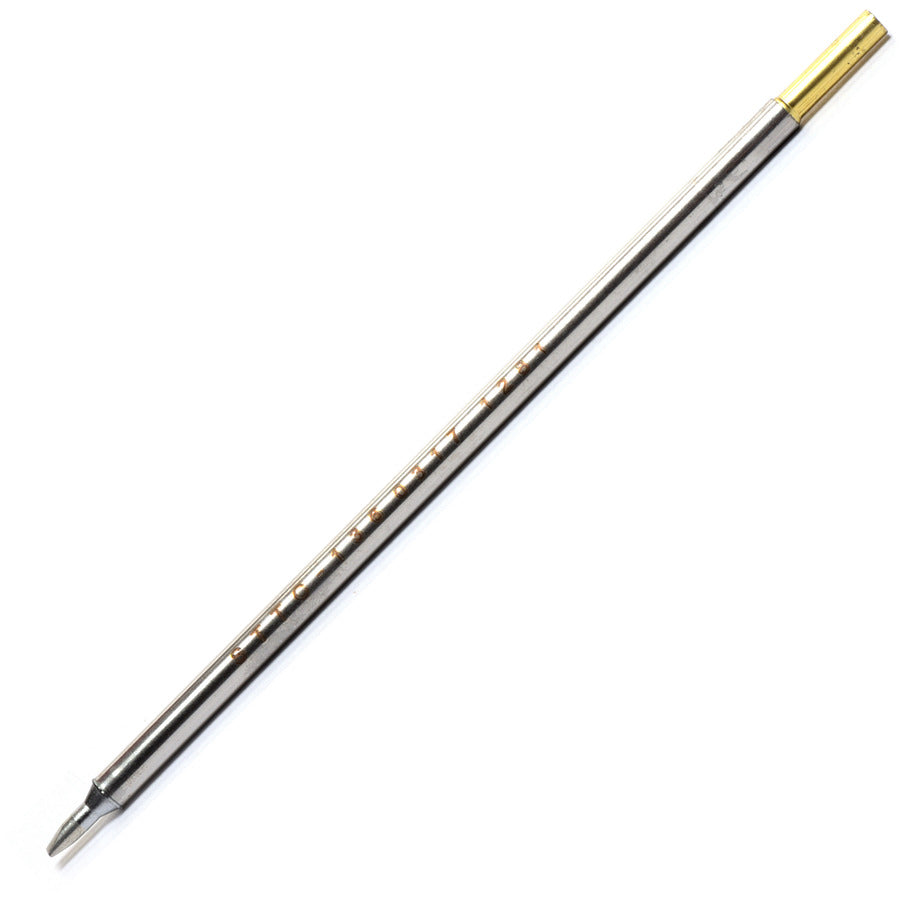

The Metcal STTC-136 is a SMT Blade Cartridge Tip. The STTC-136 has a maximum temperature of 700°F and is designed for the MX-Series Soldering Station. The STTC-136 is compatible with the MX-RM3E and/or MX-H1-AV Solder Iron Hand Pieces. 700 Series for most standard applications. Crafted with precision, the 30° chisel design offers an optimal balance between precision and coverage, making it suitable for a wide range of soldering tasks. The cartridge-style tip ensures easy replacement, minimizing downtime and promoting efficient workflow. Compatible with the advanced Metcal MX Series System, the STTC-136 is engineered to provide consistent and reliable heat transfer. Whether you're working on intricate electronics, circuit boards, or other soldering projects, this soldering tip meets the high standards required for professional-grade applications.

Metcal STTC-136 STTC 700 Series 30° Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-136 STTC 700 Series 30° Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-136
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.1 in
• Tip Shape: Chisel
• Tip Length: 0.39 in
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
