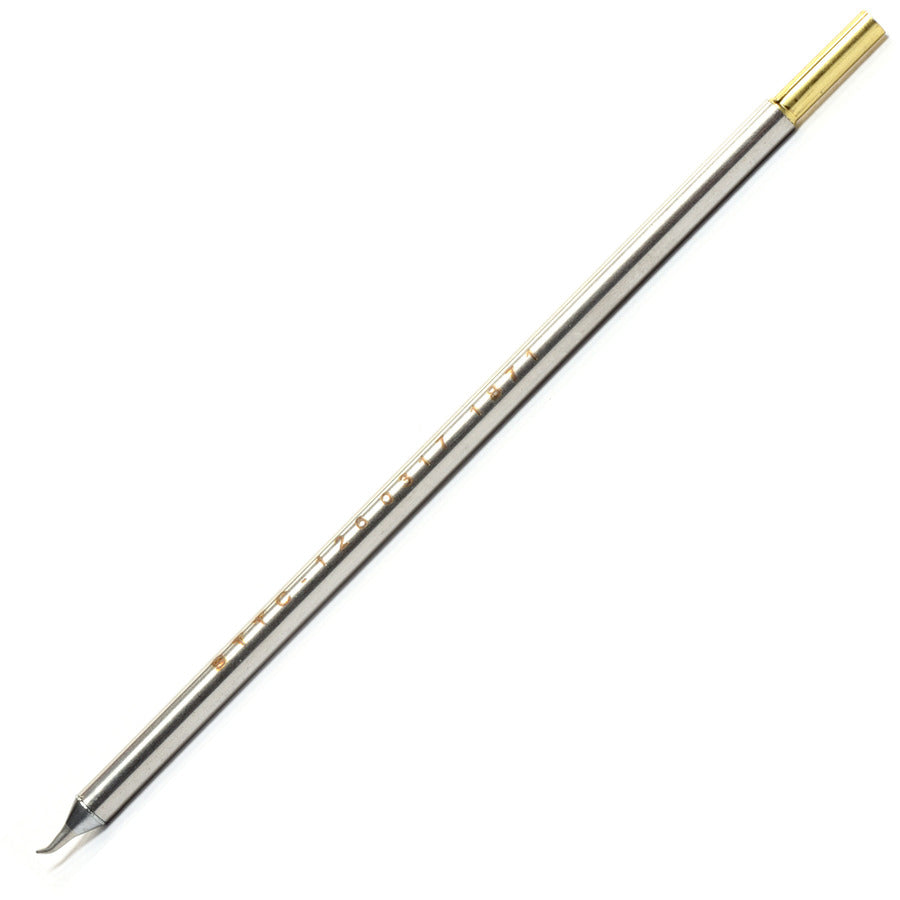

The Metcal STTC-126 is a SMT Blade Cartridge Tip. The STTC-126 has a maximum temperature of 700°F and is designed for the MX-Series Soldering Station. The STTC-126 is compatible with the MX-RM3E and/or MX-H1-AV Solder Iron Hand Pieces. This particular soldering tip features a 30° Bent Sharp Conical design, combining the benefits of a sharp point with a 30-degree angle for improved access and precision. Crafted for intricate soldering applications, the STTC-126 ensures accuracy in tight spaces and challenging angles. The cartridge-style tip design facilitates quick and easy replacements, minimizing downtime during soldering projects. This soldering tip is engineered to deliver optimal heat transfer, ensuring consistent and reliable performance.

Metcal STTC-126 STTC 700 Series 30° Bent Sharp Conical Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-126 STTC 700 Series 30° Bent Sharp Conical Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-126
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.01 in
• Tip Shape: Conical
• Tip Length: 0.31 in
• Tip Width: 0.4 mm (0.016")
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
