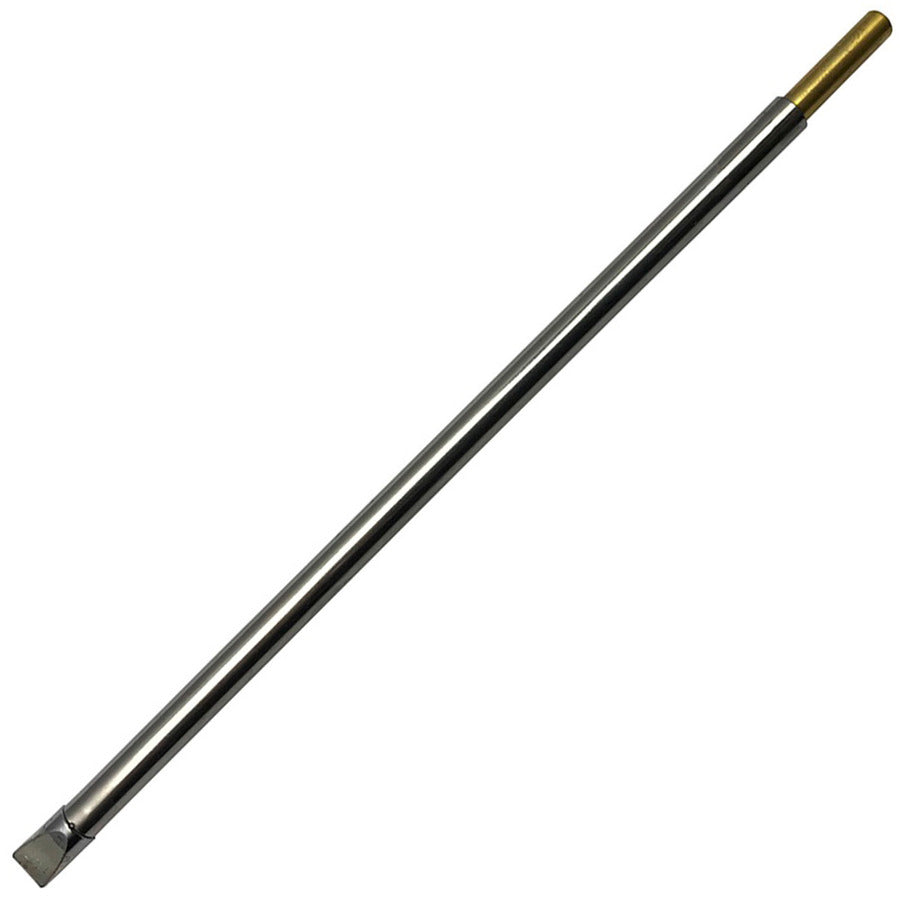

The Metcal STTC-117 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500/-5000/-5200 Systems and MX-RM3E and MX-H1-AV Hand-pieces. Crafted with high-quality materials and precision engineering, the STTC-117 ensures efficient heat transfer and optimal thermal performance. The extra-large chisel design provides a larger surface area, making it suitable for applications that demand enhanced thermal capacity and effective solder flow. This feature is particularly advantageous when working with larger components or soldering joints that require a higher heat output. The compatibility with the MX Series System ensures seamless integration, allowing users to experience the full capabilities of their soldering equipment. Whether you're working on electronics, circuit boards, or other soldering projects, the STTC-117 is designed to deliver consistent and reliable results.

Metcal STTC-117 STTC 700 Series Extra Large Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-117 STTC 700 Series Extra Large Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-117
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.2 in
• Tip Length: 0.3 in
• Tip Shape: Chisel
• Style: Blade (Single Edge)
• Temperature Rating: 775°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
