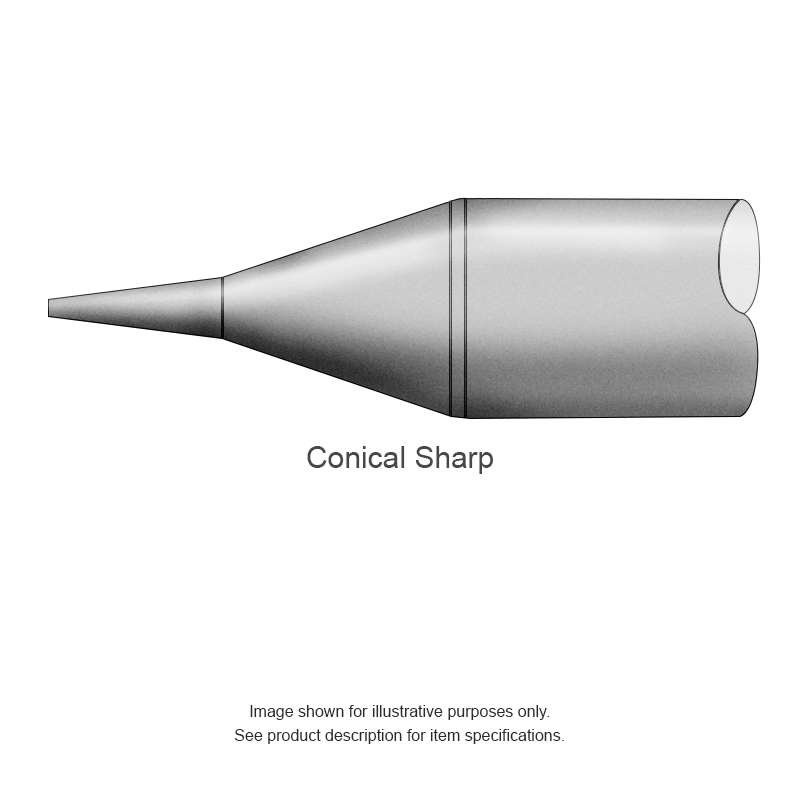

The Metcal STTC-102 soldering tip cartridge is for use with the MX soldering/rework handpieces only. Metcal STTC-102 Conical Sharp Tip is a soldering cartridge that is used with the MX-500, MX-5200, and MX-5000 Systems, with MX-RM3E and MX-H1-AV Hand-pieces. It offers a variety of tasks for through-hole and SMD rework. The 700 Series is standard for most applications. 1.78 mm x 12.2 mm.

Metcal STTC-102 STTC 700 Series Sharp Conical Cartridge Solder Tip Highlights:

• Conical soldering cartridge
• Ideal for a wide variety of tasks
• RoHS Compliant per manufacturer
• Heater designed for standard applications (max. 775°F / 413°C)
• Compatible with MX-500, MX-5000 and MX-5200 systems
• Suitable for use with MX-RM3E, MX-RM6E, MX-H1-AV and MX-H7-SF hand pieces

Metcal STTC-102 STTC 700 Series Sharp Conical Cartridge Solder Tip Specs:

• Brand: Metcal
• SKU: STTC-102
• Tip Style: Conical
• Tip Shape: Sharp
• Tip Length: 0.48 in
• Series: STTC Series
• Type: Soldering Tip
• Temperature Rating: 700°F
• Tip Width: 1.78 mm (0.07 ")
• For Use With: Metcal MX-500 Series
