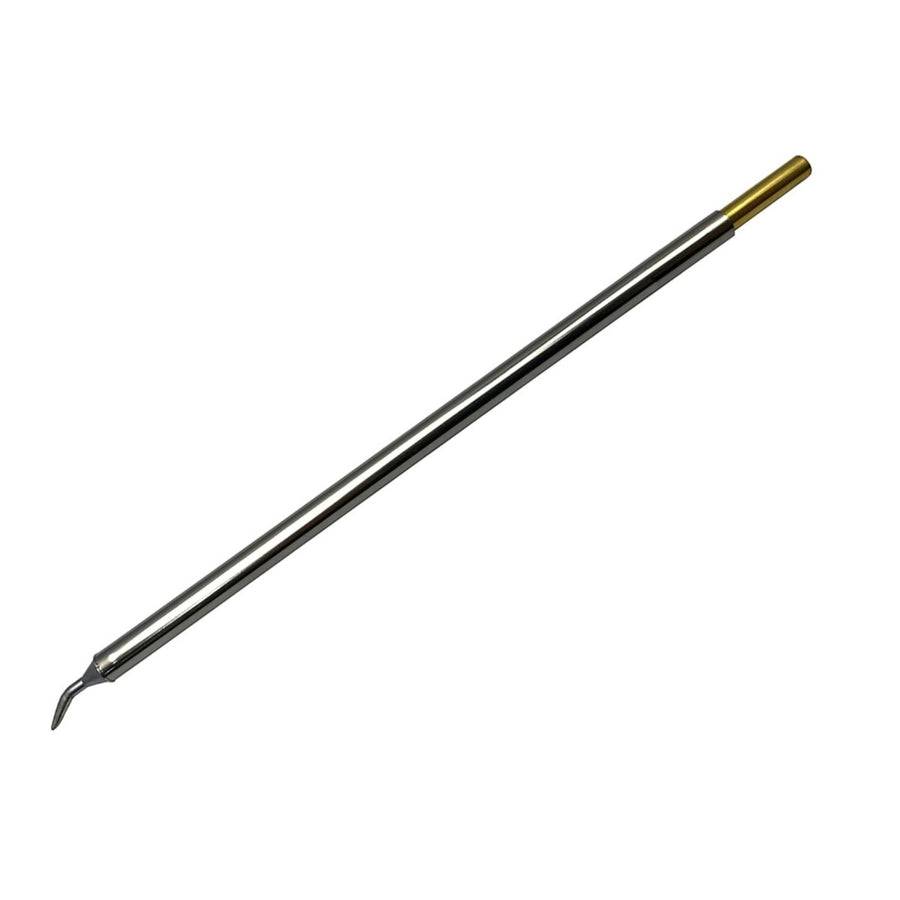

The Metcal STTC-099 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500 and MX-5000 & MX-5200 Systems and with the MX-RM3E and MX-H1-AV Hand-pieces. 600 Series for temperature sensitive applications. This specific model belongs to the STTC 600 Series and features a 30° bent chisel cartridge design. The chisel shape provides a versatile profile, making it suitable for a variety of soldering tasks that require accuracy and control. Crafted with high-quality materials, the STTC-099 is engineered to deliver efficient heat transfer, ensuring optimal soldering performance. The 30° bent design of the chisel tip allows for enhanced access to intricate components and tight spaces on circuit boards, making it particularly useful for electronics and small-scale soldering projects.

Metcal STTC-099 STTC 600 Series 30° Bent Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-099 STTC 600 Series 30° Bent Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-099
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.06 in
• Tip Shape: Chisel
• Tip Length: 0.47 in
• Tip Width: 1.5 mm (0.06")
• Lead-Free Compatible: Yes
• Temperature Rating: 600°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
