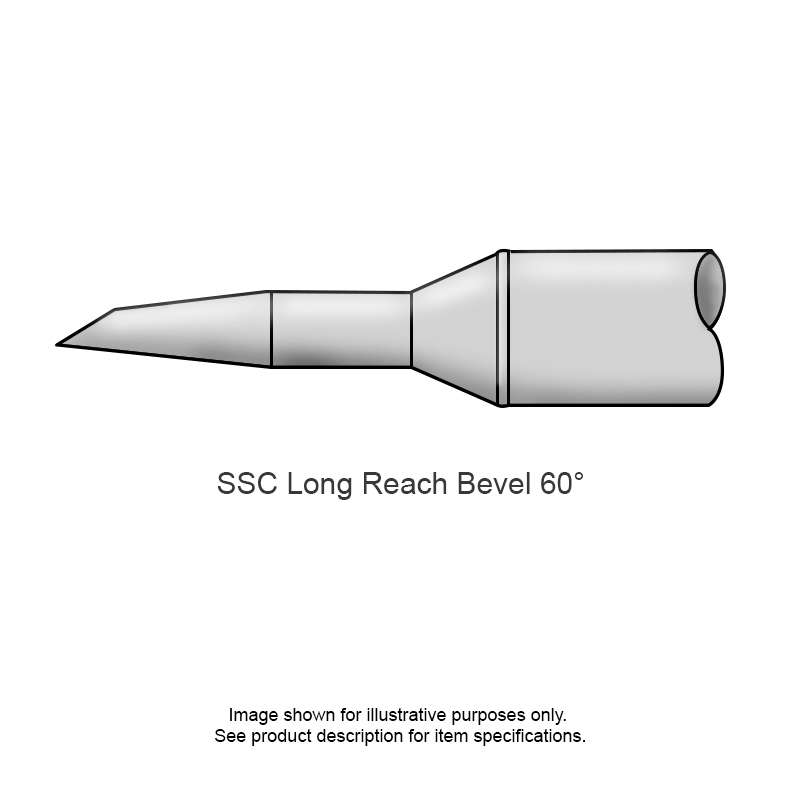

The Metcal STTC-047 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500 and MX-5000 & MX-5200 Systems and with the MX-RM3E and MX-H1-AV Hand-pieces. 600 Series for temperature sensitive applications. This high-quality soldering tip is crafted with a 60° beveled shape, providing enhanced precision and control during soldering applications. The cartridge-style design ensures easy replacement and compatibility with the Metcal MX Series, offering a reliable and efficient solution for soldering tasks. The STTC-047 tip is part of the 600 Series, which is known for its durability and consistent performance. It is engineered to deliver excellent thermal conductivity, ensuring rapid and efficient heat transfer to the solder joint. This feature is particularly crucial for achieving precise and reliable solder connections in electronics and electrical applications.

Metcal STTC-047 STTC 600 Series 60° Beveled Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-047 STTC 600 Series 60° Beveled Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-047
• Series: STTC
• Tip Angle: 60°
• Tip Size: 0.07 in
• Tip Shape: Bevel
• Tip Length: 0.56 in
• Tip Width: 1.78 mm (0.07")
• Lead-Free Compatible: Yes
• Temperature Rating: 600°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
