The Metcal STTC-043 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500/-5000/-5200 Systems and MX-RM3E and MX-H1-AV Hand-pieces. The Metcal STTC-043 is a high-quality soldering tip designed for use with MX Series Systems. Part of the STTC 600 Series, this cartridge features a sharp conical shape, offering precision and versatility for a range of soldering applications. Sharp conical cartridge for temperature sensitive applications (675 deg. F/357 deg. C).

Metcal STTC-043 STTC 600 Series Sharp Conical Cartridge Solder Tip Highlights:

• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• Metcal recommends the 700-series for the majority of applications
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• Can be used with leaded and lead-free solder
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation

Metcal STTC-043 STTC 600 Series Sharp Conical Cartridge Solder Tip Specs:

• Brand: Metcal
• SKU: STTC-043

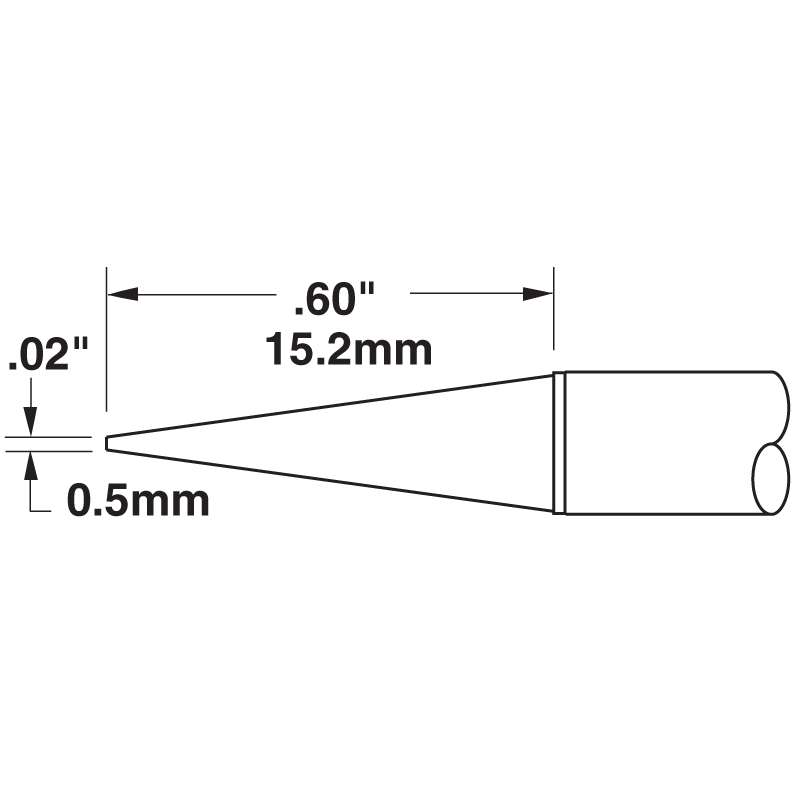

• Tip Size: 0.02in
• Tip Length: 0.6 in
• Tip Shape: Conical
• Series: STTC Series
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
