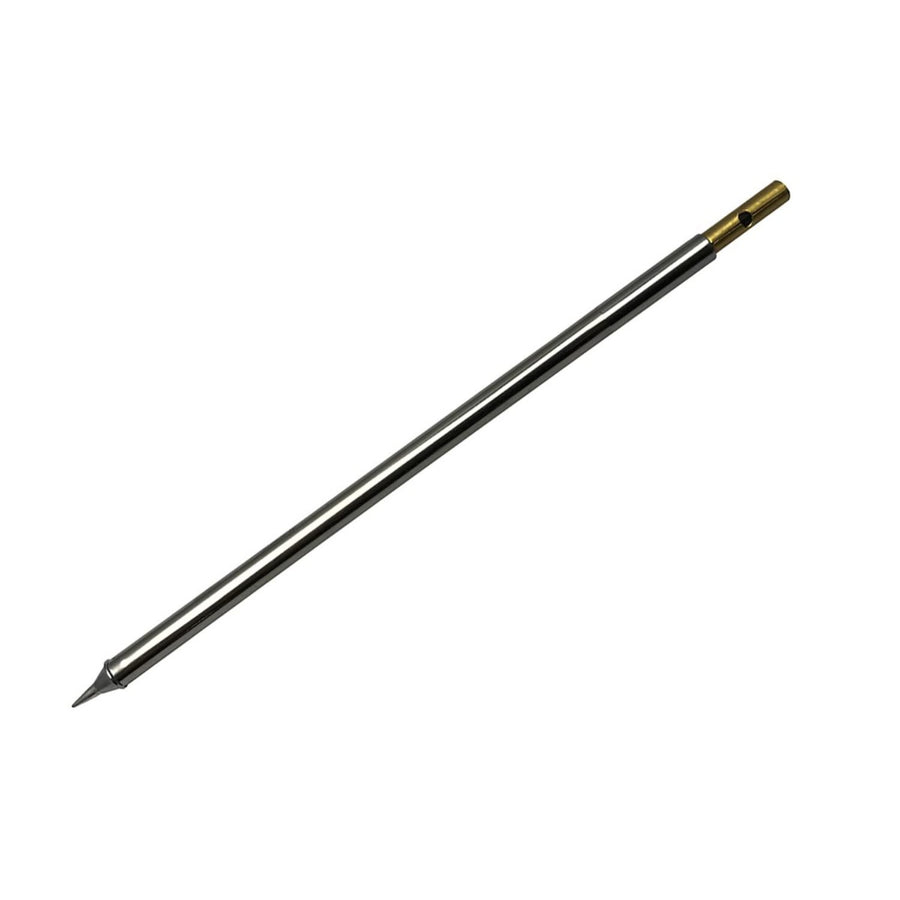

The Metcal STTC-022 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500 and MX-5000 & MX-5200 Systems and with the MX-RM3E and MX-H1-AV Hand-pieces. 600 Series for temperature sensitive applications. The tip features a sharp conical design, allowing for precise and fine soldering work. This is particularly beneficial when working on intricate electronic components or small circuitry. The cartridge is engineered for efficient heat transfer, allowing for quick and precise soldering without causing damage to sensitive components. The STTC-022 cartridge is part of the 600 Series, ensuring compatibility with Metcal's MX Series Soldering Systems. This interchangeability adds versatility to your soldering equipment.

Metcal STTC-022 STTC 600 Series Sharp Conical Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-022 STTC 600 Series Sharp Conical Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-022
• Series: STTC
• Tip Size: 0.01 in
• Tip Shape: Conical
• Tip Length: 0.33 in
• Lead-Free Compatible: Yes
• Tip Width: 0.4 mm (0.016")
• Temperature Rating: 600°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
