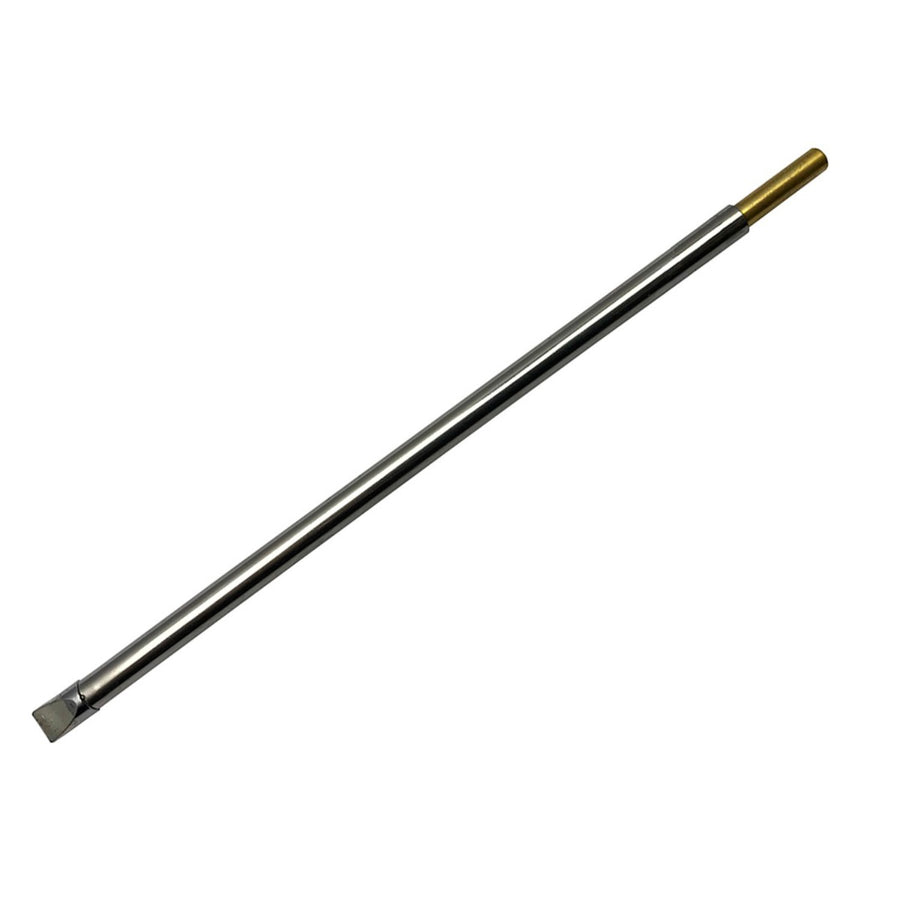

The Metcal STTC-017 Cartridges provide a wide range of options for through-hole and SMD Rework. For use with the MX-500 and MX-5000 & MX-5200 Systems and with the MX-RM3E and MX-H1-AV Hand-pieces. 600 Series for temperature sensitive applications. This soldering tip is engineered to deliver consistent and controlled heat, facilitating precise soldering work on electronic components, circuit boards, and other soldering projects. Compatible with the MX Series System, the STTC-017 is easy to install and interchange, allowing users to adapt their soldering tool to different tasks efficiently. Whether you are working on intricate electronics or larger soldering projects, the extra-large chisel cartridge provides versatility and performance.

Metcal STTC-017 STTC 600 Series Extra Large Chisel Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal STTC-017 STTC 600 Series Extra Large Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: STTC-017
• Series: STTC
• Tip Angle: 30°
• Tip Size: 0.2 in
• Tip Shape: Chisel
• Tip Length: 0.3 in
• Tip Width: 5 mm (0.2")
• Shape: Extra Large Chisel
• Temperature Rating: 600°F
• Product Type: Soldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
