The Metcal SSC-726A Tip Cartridges have been upgraded with a new, high power coil assembly that delivers additional power to demanding solder joints, without the need to increase temperature. For use with the MFR-1160 and MFR-1161 Soldering Systems with the MFR-H6-SSC hand-piece, but also with the previous Metcal SP200 Soldering System. 700 Series for most standard applications.

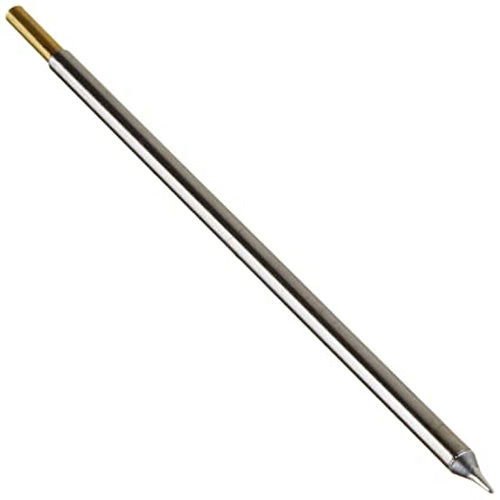

Metcal SSC-726A SSC 700 Series 30° Sharp Bent Cartridge Solder Tip Highlights:

• 30 deg./.02 in. x .45 in. (.51mm x 11.4mm)
• Bent sharp conical cartridge for standard applications (775 deg. F/412 deg. C)
• SSC-Solder Tip Cartridges are the standard soldering tip range for the Metcal SP-200 and MFR-series soldering systems
• SSC-Cartridges are available in 2 temperature ranges, 600-series nominally 330 ˚C and 700-series nominally 390 ˚C
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• 600 will all be SSC-6xxA and series and 700 will be SSC-7xxA
• Can be used with leaded and lead-free solder
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation.

Metcal SSC-726A SSC 700 Series 30° Sharp Bent Cartridge Solder Tip Specs:

• Brand: Metcal
• SKU: SSC-726A
• Tip Angle: 30°
• Tip Size: 0.02 in
• Series: SSC Series
• Tip Shape: Conical
• Tip Length: 0.45 in
• Product Type: Soldering Tip
• For use with: previous SP200 Systems and new MFR-1160/MFR-1161 Systems w/FR-H6-SSC Hand-Pieces
