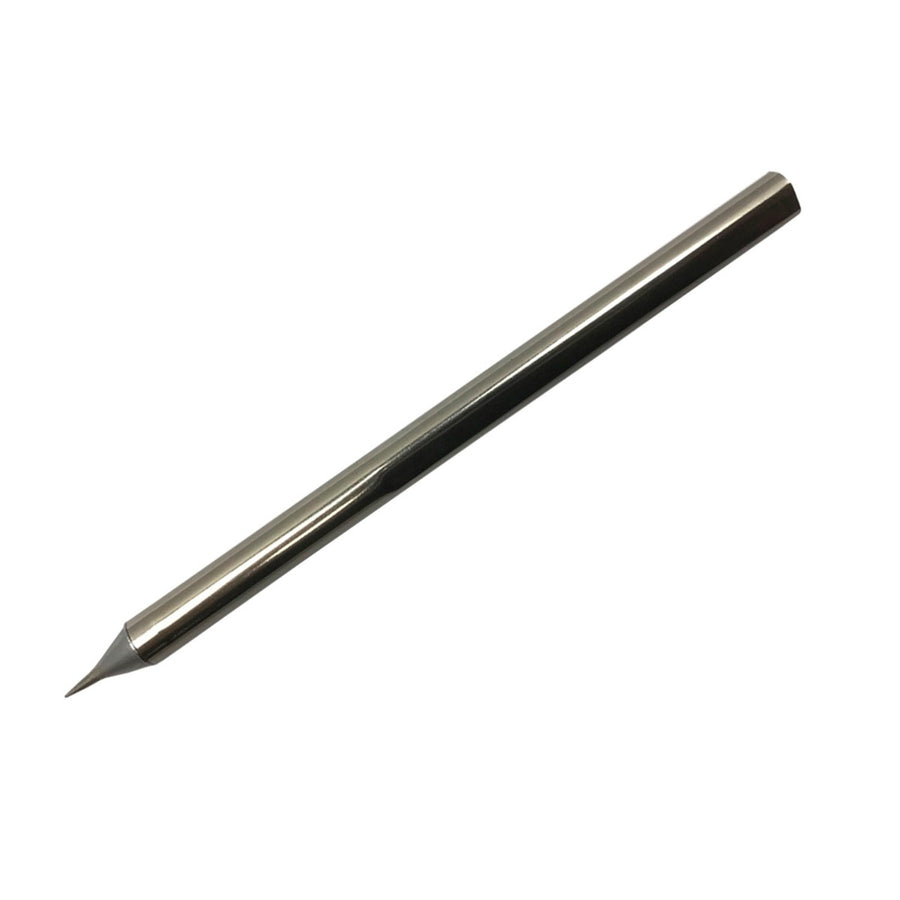

The Metcal SSC-722A Tip Cartridges have been upgraded with a new, high power coil assembly that delivers additional power to demanding solder joints, without the need to increase temperature. For use with the MFR-1160 and MFR-1161 Soldering Systems with the MFR-H6-SSC hand-piece, but also with the previous Metcal SP200 Soldering System. The SSC-722A is a SSC Series Sharp Conical Tip Cartridge. This cartridge is designed for use with the MFR-H6-SSC Hand-Piece (MFR Series Systems) and the old SP200 Solder System. The SSC-722A measures 0.02" dia. x 0.45" long (0.51 x 11.4mm). This tip cartridge offers a maximum temperature of 775°F (413°C), designed for soldering temperature sensitive components.

Metcal SSC-722A Sharp Conical Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• 600 will all be SSC-6xxA and series and 700 will be SSC-7xxA
• The temperature/series is designated by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• SSC-Cartridges are available in 2 temperature ranges, 600-series nominally 330 ˚C and 700-series nominally 390 ˚C
• SSC-Solder Tip Cartridges are the standard soldering tip range for the Metcal SP-200 and MFR-series soldering systems

Metcal SSC-722A Sharp Conical Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SSC-722A
• Series: SSC
• Tip Size: 0.02 in
• Tip Shape: Conical
• Tip Length: 0.45 in
• Tip Width: 0.5 mm (0.02")
• Temperature Rating: 700°F
• Product Type: Soldering Tip
• For Use With: MFR-1160 Systems, MFR-H6-SSC Hand-pieces
