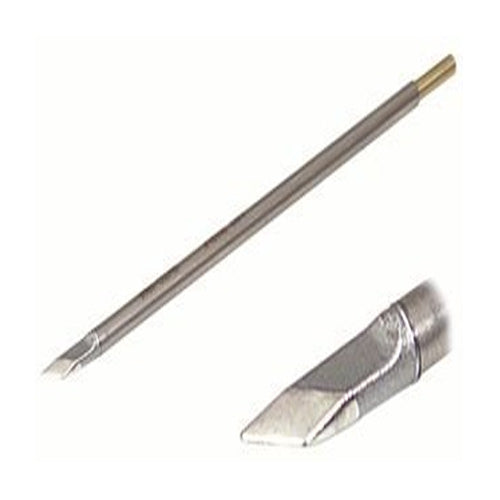

The SMTC-1173 is a SMTC Series 45° Knife Tip Cartridge. The SMTC Series Tip Cartridges are designed for use with the MX Series Solder Systems, using the MX-H1-AV "Advanced" Hand-Piece or the MX-RM3E Coil Assembly Hand-Piece. These cartridges are ideal for Surface Mount Soldering and Rework. The SMTC-1173 measures 0.18" wide x 0.65" long (4.8 x 16.51mm) with a 45° tip angle. This tip features an increased "Tinned Area" (T.A.), this area measure 0.23" (5.84mm) thick. The SMTC-1173 tip offers a maximum temperature of 775°F (412°C), designed for most standard applications.

Metcal SMTC-1173 45° Knife Drag Cartridge Soldering Tip Highlights:

• Knife Cartridges for use with Metcal MX Series Soldering & Rework with MX-H1-AV and MX-RM3E Hand-pieces for conduction rework of surface mount components
• The knife cartridges are ideal for multi-lead soldering and particularly suited to soldering of J-leaded components such as PLCCs and DRAMS
• Compatible with MX-500, MX-5000 and MX-5200 systems
• Compatible with MX-RM3E and MX-H1-AV hand pieces
• Several different temperature ranges available
• 45 deg./.18 in. x .65 in. (4.8mm x 16.51mm)
• Knife cartridge for standard applications (775 deg. F/412 deg. C)
• 500 Series - 575°F, for temperature sensitive applications
• 600 Series - 675°F, for temperature sensitive applications
• 700 Series - 775°F, for most standard applications
• 800 Series - 905°F, for ceramic and high thermal demand applications
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece

Metcal SMTC-1173 45° Knife Drag Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SMTC-1173
• Series: SMTC Series
• Product Type: Desoldering Tip
• Tip Shape: Knife
• Tip Size: 0.19in
• Tip Length: 0.65in
• Tip Angle: 45°
• Length: 1.05 in
• Width: 6.95 in
• Height: 0.55 in
