The Metcal SMTC-113 quad cartridge is designed for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. Equipped with four cartridges, the SMTC-113 is optimized for efficient heat transfer and precise soldering performance. This high-quality soldering tip is crafted to meet the demands of precision soldering, particularly for PLCC 28 components. The PLCC 28 designation indicates its suitability for soldering tasks involving Plastic Leaded Chip Carrier (PLCC) components with 28 leads. This type of soldering tip is often used in electronics manufacturing and repair applications where delicate and intricate soldering work is required. The compatibility with MX Series Systems ensures seamless integration with Metcal's advanced soldering platforms, providing users with a reliable tool for their soldering needs.

Metcal SMTC-113 SMTC 700 Series Quad Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

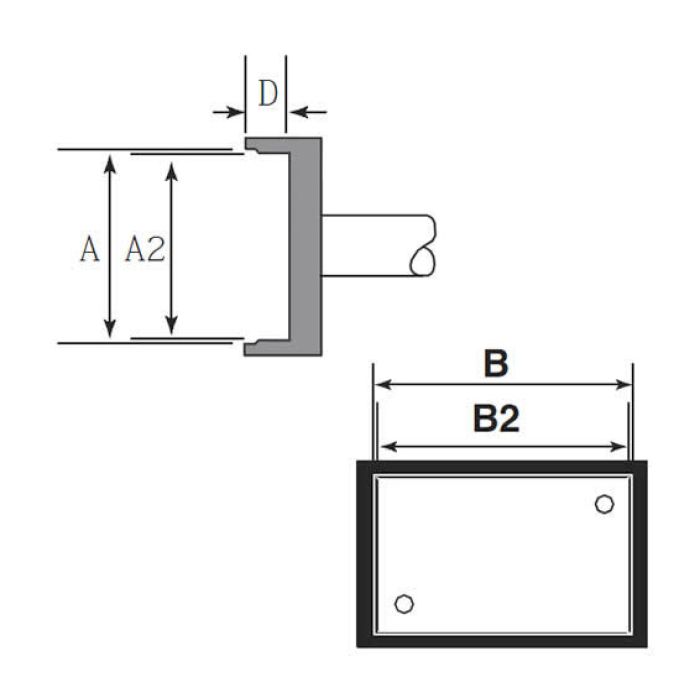

Metcal SMTC-113 SMTC 700 Series Quad Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SMTC-113
• Series: SMTC
• Depth: .100 in
• Tip Shape: Quad
• Tip Width: 0.500 in
• Tip Size: 0.5 x 0.5 in
• Tip Length: 0.500 in
• SMT Type: SQFP-48 (EIAJ)
• Temperature Rating: 700°F
• Product Type: Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
