The Metcal SMTC-1121 Designed for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. Rework Quad Cartridges for use with Metcal MX Series Soldering & Rework with MX-H1-AV and MX-RM3E Hand-pieces for conduction rework of surface mount components. The quad cartridges are used for the removal of four-sided devices such as QFP and PLCC. 700 Series for most standard applications. The tip is specifically tailored for handling SQFP (Small Quad Flat Pack) components with 48 pins. This indicates its suitability for intricate soldering tasks on electronic circuit boards where components with a quad flat pack arrangement need precise and controlled soldering. The Quad Cartridge design implies that the soldering tip features four distinct heating elements, providing efficient and consistent heat distribution. This is crucial for achieving reliable solder joints and preventing overheating or damage to sensitive electronic components.

Metcal SMTC-1121 SMTC 700 Series Quad Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

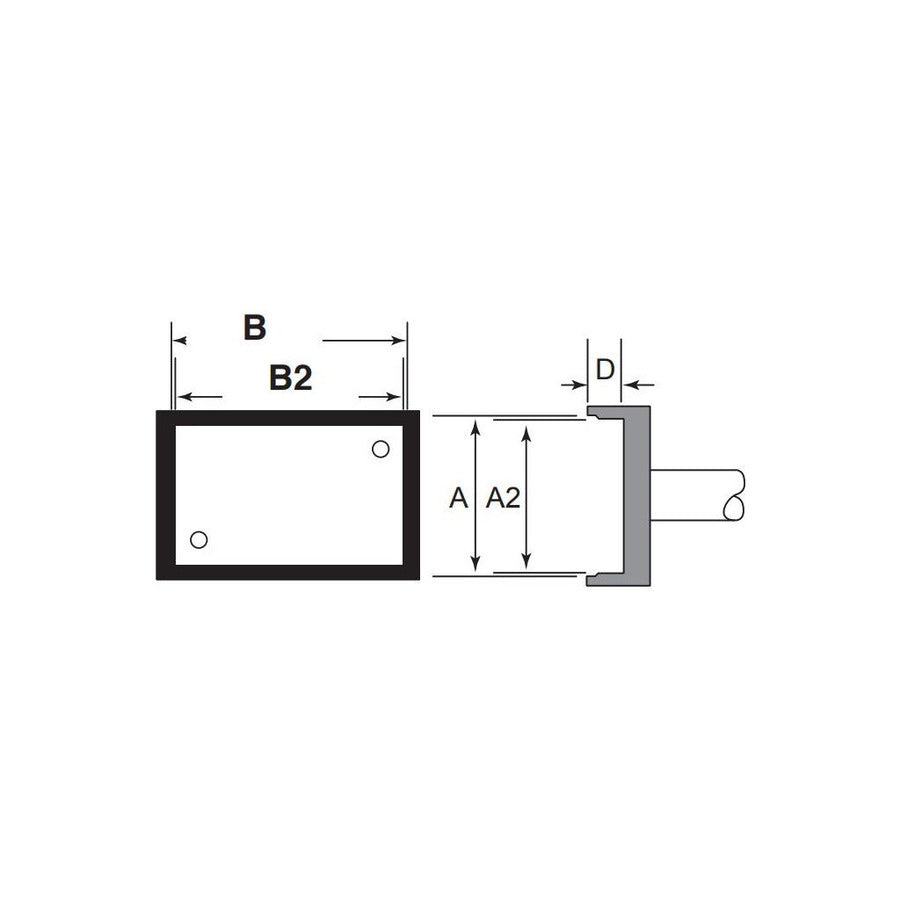

Metcal SMTC-1121 SMTC 700 Series Quad Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SMTC-1121
• Series: SMTC
• Tip Shape: Quad
• Tip Length: 0.33 in
• Tip Size: 0.33 x 0.33 in
• SMT Type: SQFP-48 (EIAJ)
• Tip Width: 8.38 mm (0.33")
• Temperature Rating: 700°F
• Product Type: Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
