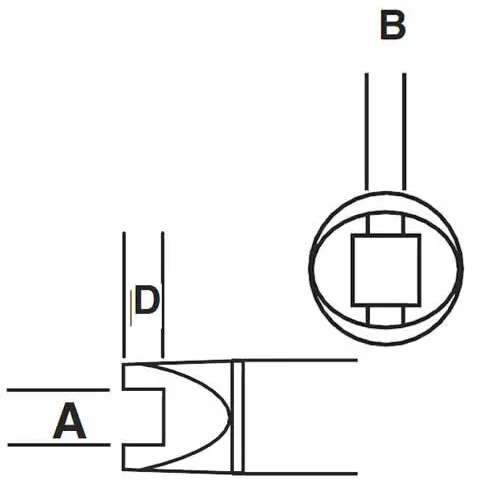

The Metcal SMTC-105 slot cartridge is designed for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. The Metcal SMTC-105 SMTC 700 Series Slot Cartridge Soldering Tip is a precision tool designed for soldering applications, specifically tailored for SOT-23 components. This soldering tip is part of the SMTC 700 Series, known for its high-quality and reliable performance in electronic soldering tasks. The tip features a narrow 1.73mm width, making it ideal for precise soldering on small surface-mount devices, such as SOT-23 packages commonly found in electronic circuits. The slot design allows for efficient heat transfer and precise control during soldering operations.

Metcal SMTC-105 SMTC 700 Series Slot Cartridge Soldering Tip Highlights:

• STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C
• The temperature/series is designated by the by the first digit following the dash in the part number. e.g
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• Metcal recommends the 700-series for the majority of applications
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• Can be used with leaded and lead-free solder
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation.

Metcal SMTC-105 SMTC 700 Series Slot Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SMTC-105
• Tip Shape: Slot
• Depth: 0.050 in
• Series: SMTC Series
• Tip Size: 0.06 x 0.1in
• SMD Component: SOT-23
• Temperature Rating: 700°F
• Product Type: Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
