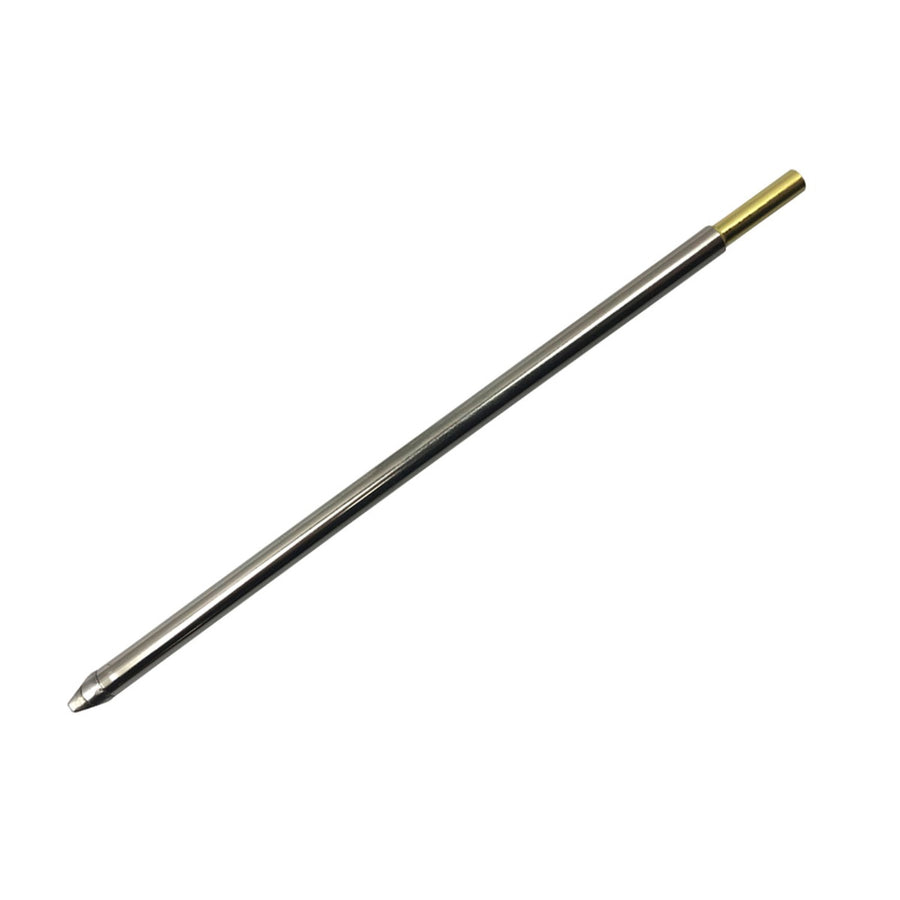

The Metcal SMTC-102 slot cartridge is sesigned for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. Slot cartridge for use with Metcal MX Series Soldering & Rework with MX-RM3E and MX-H1-AV Hand-pieces for conduction rework of surface mount components. The slot cartridges are used for the removal of discrete and passive devices. 700 Series for most standard applications. The SMTC-102 features a slot-style design, allowing for efficient and accurate soldering of components with dimensions like Chip 1206 and 1210. The slot configuration provides a secure fit around these components, ensuring precise heat application and facilitating the soldering process. This cartridge tip is part of the broader SMTC 700 Series, known for its advanced technology and performance in the realm of soldering solutions.

Metcal SMTC-102 SMTC 700 Series Slot Cartridge Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• Metcal recommends the 700-series for the majority of applications
• 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx
• The temperature/series is designated by the by the first digit following the dash in the part number. e.g
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications
• STTC, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems
• All cartridges are available in 3 temperature ranges, 600-series nominally 330 ˚C, 700-series nominally 390 ˚C and 800-series nominally 450 ˚C

Metcal SMTC-102 SMTC 700 Series Slot Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SMTC-102
• Series: SMTC
• Width: .140 in
• Tip Shape: Slot
• Depth: 0.070 in
• Tip Size: 0.14 x 0.06 in
• Temperature Rating: 700°F
• SMT Type: Chip 1206, 1210
• Product Type: Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
