The Metcal SMTC-0172 micro-fine conical cartridge is designed for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. Hook Cartridges for use with Metcal MX Series Soldering & Rework with MX-H1-AV and MX-RM3E Hand-pieces for conduction rework of surface mount components. These cartridges are ideal for multi-lead soldering and particularly suited to soldering of J-leaded components such as PLCCs and DRAMS. 600 Series for temperature sensitive applications.

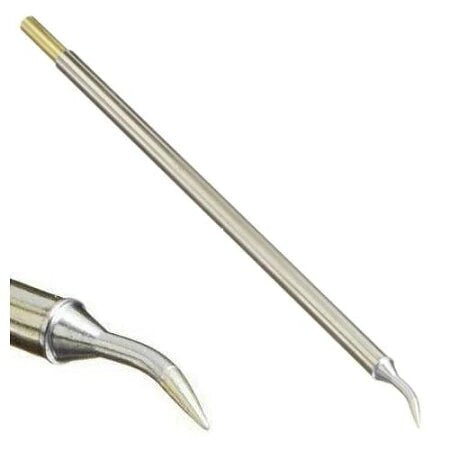

Metcal SMTC-0172 SMTC 600 Series 30° Micro-Fine Rework Bent Conical Cartridge Solder Tip Highlights:

• Crafted from top-quality materials, this solder tip ensures durability and longevity, maintaining its performance even under demanding working conditions
• Specifically designed for use with MX Series soldering and rework systems, ensuring seamless integration and optimal performance
• The cartridge tip is engineered for efficient heat transfer, facilitating quick and controlled soldering without damaging surrounding components
• The 30° bent conical shape of the solder tip allows for intricate and precise soldering on small and intricate components, making it particularly suitable for micro-soldering applications

Metcal SMTC-0172 SMTC 600 Series 30° Micro-Fine Rework Bent Conical Cartridge Solder Tip Specs:

• Brand: Metcal
• SKU: SMTC-0172
• Tip Shape: Fine
• Tip Angle: 30 Deg
• Tip Length: 0.6 in
• Series: SMTC Series
• Tip Style: Bent Conical
• Tip Width: 0.5 mm (0.02 ")
• Temperature Rating: 600°F
• Type: Soldering and Desoldering Tip
• For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
