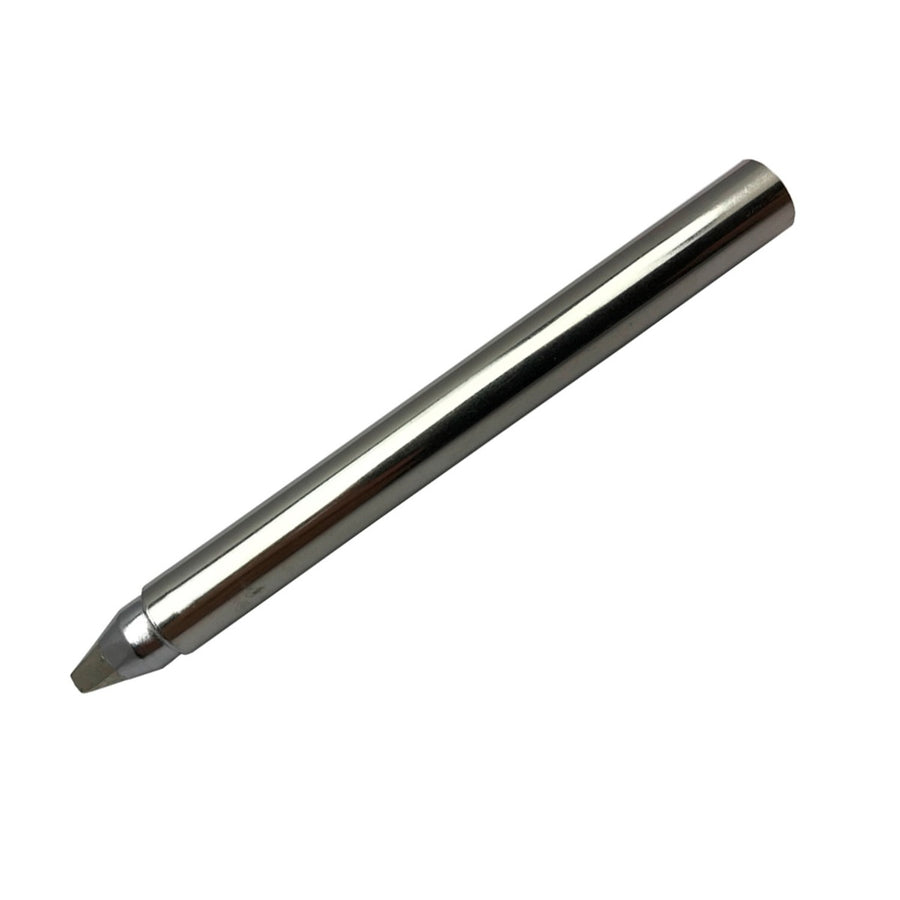

The Metcal SFV-CH25 Tips are for use with the soldering tip hand-piece of the PS and MFR Platforms. They are recommended for heavy duty applications. The second digit denotes substrate material. The SFV-CH25 is a SxV Series, Chisel Solder Tip. This tip is designed for use with the PS-HC3 Solder Iron Hand-Piece. The SFV-CH25 is built with a "F" (F4/Fiber Glass) material substrate. Ideal for most general production soldering applications. All SxV tips features an added plating thickness, extending the overall life of the tip. This tip measures 0.10" wide x 0.43" long (2.5 x 11.3mm). The "F" Style tips offer a maximum temperature of 790°F (421°C). The standard chisel shape of the tip allows for versatile usage, making it suitable for various soldering tasks such as through-hole soldering, surface mount soldering, and general-purpose soldering. The design of the tip facilitates efficient heat transfer, ensuring quick and reliable soldering without compromising the integrity of components.

Metcal SFV-CH25 SFV Series Standard Chisel Soldering Tip Highlights:

• Can be used with leaded and lead-free solder
• The temperature series SFV are nominally 390 ˚C
• STV-series are nominally 330 ˚C for light load application
• Metcal recommends the SFV-series for the majority of applications
• The second letter in the part number designates the temperature series
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• SxV-Solder Tips are the standard soldering tip range for the Metcal PS-900/MFR1100, MFR-2210, MFR-1351-series soldering systems
• However, the family also offer a higher temperature serie designated SCV, nominally 450 ˚C, for high temperature and thermally demanding applications

Metcal SFV-CH25 SFV Series Standard Chisel Soldering Tip Specs:

• Brand: Metcal
• SKU: SFV-CH25
• Series: SFV
• Tip Size: 0.1 in
• Tip Shape: Chisel
• Tip Length: 0.43 in
• Material: Fiberglass
• Tip Width: 2.5 mm (0.1")
• Lead-Free Compatible: Yes
• Product Type: Soldering Tip
• For Use With: PS-900 Systems, MFR-1120 Systems, MFR-2220 Systems, MFR-2222 Systems, PS-HC3 Hand-Pieces, MFR-H2-ST Hand-Pieces, PS-CA3 Coil Assemblies, MFR-CA2 Coil Assemblies
