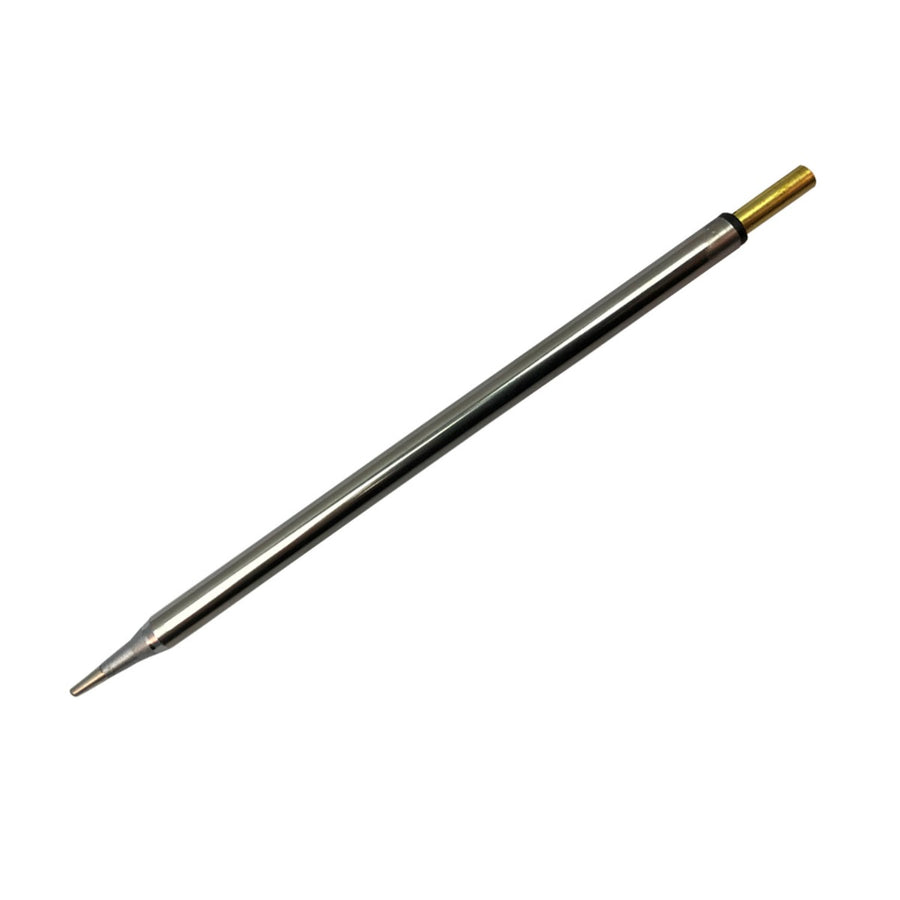

The Metcal SFP-DRH15 Cartridges are for use with the MFR-H1-SC soldering cartridge hand-piece of the MFR Single and Dual Platforms (MFR-1100 and MFR-2200). The SFP-DRH15 is a SxP Series, (30°) Beveled Hoof Solder Cartridge. This cartridge is designed for use with the MFR-H1-SC2 Hand-Piece. The SFP-DRH15 is built with a "F" (F4/Fiber Glass) material substrate. Ideal for most general production soldering applications. The cartridge tip measures 0.06" wide x 0.65" long (1.5 x 16.5mm). The SFP-DRH15 offers a maximum temperature of 790°F (421°C). The Standard Drag Hoof design is particularly useful for drag soldering techniques, providing excellent control and maneuverability during soldering processes. SmartHeat ensures rapid and consistent heating, enhancing the efficiency and effectiveness of the soldering process. The cartridge is designed to withstand prolonged use.

Metcal SFP-DRH15 SFP Series Standard Drag Hoof Cartridge Soldering Tip Highlights:

• The SFP-series are nominally 390 ˚C
• Can be used with leaded and lead-free solder
• STP-series are nominally 330 ˚C for light load application
• Metcal recommends the SFP-series for the majority of applications
• The second letter in the part number designates the temperature serie
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems
• However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications

Metcal SFP-DRH15 SFP Series Standard Drag Hoof Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SFP-DRH15
• Series: SFP
• Tip Size: 0.06 in
• Tip Shape: Hoof
• Tip Length: 0.65 in
• Material: Fiberglass
• Tip Width: 1.5 mm (0.06")
• Product Type: Soldering Tip
• For Use With: MFR-1110 Systems, MFR-1161 Systems, MFR-1351 Systems, MFR-2211 Systems, MFR-2241 Systems, MFR-H1-SC Hand-Pieces
