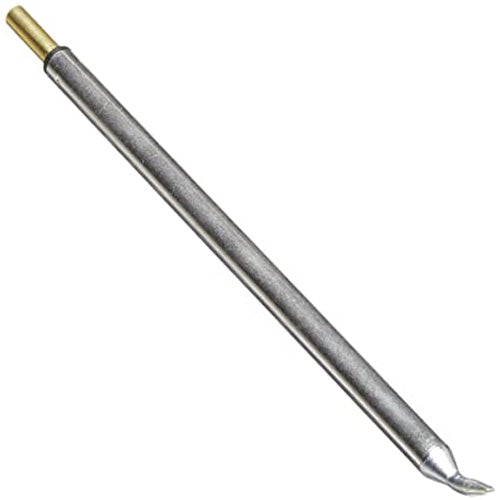

The Metcal SFP-CHB15 Cartridges are for use with the MFR-H1-SC soldering cartridge hand-piece of the MFR Single and Dual Platforms (MFR-1100 and MFR-2200). The SFP-CHB15 is a SxP Series, Bent Chisel (30°) Solder Cartridge. This cartridge is designed for use with the MFR-H1-SC2 Hand-Piece. The SFP-CHB15 is built with a "F" (F4/ Fiber Glass) material substrate. Ideal for most general production soldering applications. This cartridge tip measures 0.06" wide x 0.474" long (1.5 x 12.3mm). The SFP-CHB15 offers a maximum temperature of 790°F (421°C). The chisel shape of the tip facilitates precise control over the soldering process, allowing for accurate application of solder to electronic components. The 30° standard bent chisel design enhances accessibility and maneuverability in tight spaces, making it ideal for intricate soldering tasks.

Metcal SFP-CHB15 SFP Series 30° Standard Bent Chisel Cartridge Soldering Tip Highlights:

• The SFP-series are nominally 390 ˚C
• Can be used with leaded and lead-free solder
• STP-series are nominally 330 ˚C for light load application
• Metcal recommends the SFP-series for the majority of applications
• The second letter in the part number designates the temperature serie
• The Metcal "SmartHeat-Technology" automatically adjusts power levels during each soldering operation
• SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems
• However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications

Metcal SFP-CHB15 SFP Series 30° Standard Bent Chisel Cartridge Soldering Tip Specs:

• Brand: Metcal
• SKU: SFP-CHB15
• Series: SFP
• Tip Angle: 30°
• Tip Size: 0.06 in
• Tip Shape: Chisel
• Tip Length: 0.47 in
• Material: Fiberglass
• Tip Width: 1.5 mm (0.06")
• Product Type: Soldering Tip
• For Use With: MFR-1110 Systems, MFR-1161 Systems, MFR-1351 Systems, MFR-2211 Systems, MFR-2241 Systems, MFR-H1-SC Hand-Pieces
