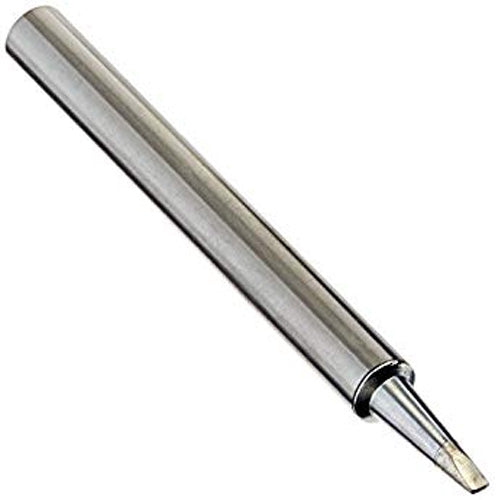

The SCV-CH24A is a SxV Series, Long Reach Chisel Solder Tip. This tip is designed for use with the PS-HC3 Solder Iron Hand-Piece. The SCV-CH24A is built with a "C" (Ceramic) material substrate. Ideal for soldering components with a high thermal demand, that require access to restricted board areas. The SxV Series tips have an added plating thickness to the tips face for optimized thermal performance. The SCV-CH24A measures 0.094" wide x 0.719" long (2.4 x 18.3mm). The "T" Style tips offer a maximum temperature of 860°F (460°C).

Metcal SCV-CH24A Long Reach Chisel Solder Tip Highlights:

• Compatible with PS-900, MFR-1120, MFR-2220, MFR-2222 systems
• Compatible with PS-HC3, MRF-H2-ST, MFR-H2-ST2 hand pieces
• Compatible with PS-CA3, MFR-CA2, MFR-CA3 coil assemblies
• Several different temperature ranges available
• STV - 690°F, Temperature sensitive
• SFV - 790°F, FR4/Fiberglass for most standard applications
• SCV - 880°F, Ceramic for high thermal demand applications

Metcal SCV-CH24A Long Reach Chisel Solder Tip Specs:

• Brand: Metcal
• SKU: SCV-CH24A
• Lead-Free Compatible: Yes
• Series: SxV Soldering Cartridges
• Material Substrate: "C" - Ceramic
• Tip Style: Chisel
• Tip Width: 0.094" (2.4mm)
• Tip Length (Working Distance): 0.719" (18.3mm)
• Compatible Iron: PS-HC3
• Compatible Station(s): PS-900 Series
