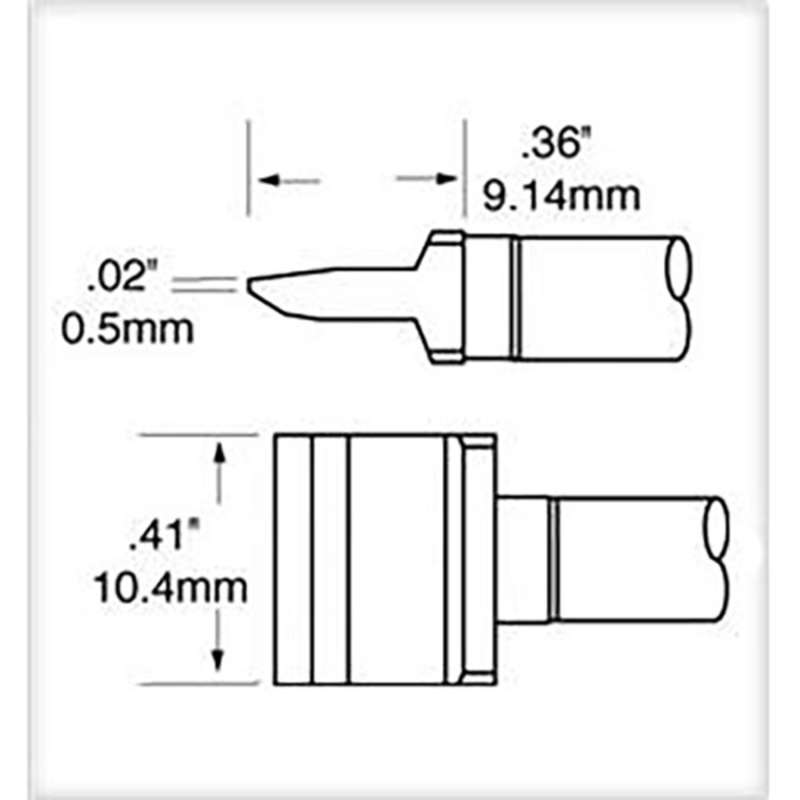

The Metcal RFP-BL2 is a RxP Series, SMT Rework "Blade" Style Cartridge. This cartridge is designed for use with the MFR-H1-SC2 Solder Iron Hand-Piece. The RFP-BL2 is built with a "F" (F4/Fiber Glass) material substrate. Ideal for most general soldering and rework applications. The cartridge measures as follows... Side A (Overall Blade Width) = 0.62" (15.6mm) wide x 0.02" (0.5mm) Tip Thickness x 0.36" (9.14mm) Working Distance (W.D.). The "F" substrate offers a maximum temperature of 790°F (421°C).

Metcal RFP-BL2 RFP Series Rework Blade Cartridge Highlights:

• Series RFP
• Tip Shape Blade
• Product Type Soldering Tip
• The second digit denotes substrate material
• Fiber glass blade cartridge for standard applications (790 deg. F/421 deg. C)
• For use with MFR-1110/MFR-1161/MFR-1351/MFR-2211/MFR-2241 Systems with MFR-H1-SC and MFR-H1-SC2 Hand-Pieces

Metcal RFP-BL2 RFP Series Rework Blade Cartridge Specs:

• Brand: Metcal
• SKU: RFP-BL2
• Width: 1.0 in
• Height: 0.6 in
• Length: 7.0 in
• Tip Size: 0.62in
• Tip Length: 0.36in
• Material: Fiberglass
• Tip Thickness: 0.0200 in
• Compatible Iron: MFR-H1-SC2
