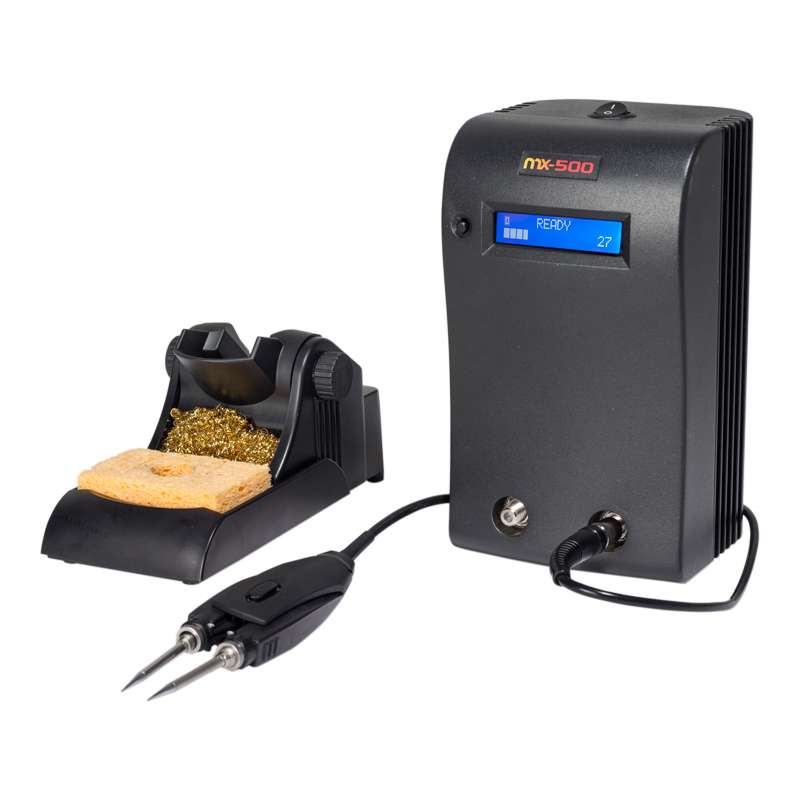

The Metcal MX-500 Soldering/Tweezer Rework System utilizes SmartHeat Technology, wherein each cartridge is equipped with a self-regulating heater which 'senses' its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.

Metcal MX-500 Soldering Highlights:

• System includes MX-PS500 Power Supply, MX-PTZ Precision Tweezer Hand-piece, and workstand
• Built in net power meter which will display a graphical and numerical representation of the power applied to the cartridge
• AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed
• Automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance
• Greater process control with SmartHeat Technology

Metcal MX-500 Soldering Specs:

• Brand: Metcal
• SKU: MX-500
• Product Type: Dual Port Switchable
• Operating Temperature: 10 to 40°C
• Maximum Temperature: 55°C
• Input Line Voltage: 100 – 240 VAC, grounded circuit
• Input Line Frequency: 50/60 Hz
• Rated Power Consumption: 70 Watts
• Power Supply Dimensions: w x d x h 12.1cm (4.8”) x 12.1cm (4.8”) x 22.2cm (8.8”)
