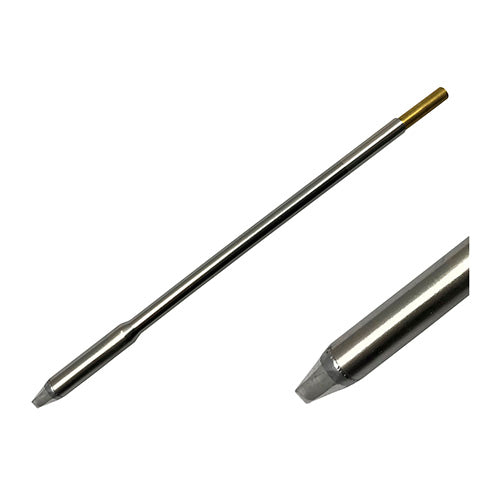

The HTC-9CH0025S is a HTC Series 40° Chisel Tip Cartridge. The HTC Series tip cartridges are designed for use with the MX-Series Solder Systems, using the MX-H6-HTD "High Thermal Demand" Hand-Piece. This Chisel Style Solder Tip is ideal for soldering components with a high thermal demand. The HTC Series tips deliver more thermal energy to the tips pad, minimizing the risk of component and/or PCB damage associated with leaving the iron tip on the solder joint for extended periods of time. This HTC Tip measures 0.098" (2.5mm) wide x 0.02" (0.5mm) Thick x 0.31" (8mm) long. The HTC-9CH0025S offers a 900°F Temperature Rating, providing a maximum soldering temp of 950°F (510°C).

Metcal HTC-9CH0025S High Thermal Demand Chisel Cartridge Solder Tip Highlights:

• Several temperature ranges available
• Ideal for high thermal demand soldering
• Effectively delivers thermal energy to the most demanding loads
• HTC cartridges can be used with leaded and lead-free solder
• HTC Solder Tip Cartridges are the high-power soldering tip range for the Metcal MX-5200 and MX-5000 Series soldering systems
• Metcal recommends the 700-series for most applications. 800 and 900-series cartridges are for high-temperature and thermally demanding applications
• Metcal SmartHeat technology automatically adjusts power levels during each soldering operation to maintain accurate temperatures through the soldering process.

Metcal HTC-9CH0025S High Thermal Demand Chisel Cartridge Solder Tip Specs:

• Brand: Metcal
• SKU: HTC-9CH0025S
• Tip Style: Chisel
• Tip Width: 0.098" (2.5mm)
• Tip Thickness: 0.02" (0.51mm)
• Length (Working Distance): 0.33"
• Special Designator: S = Standard
• Series: HTC High Thermal Demand
• Temperature Rating (Max.): 9 = 950°F (510°C)
