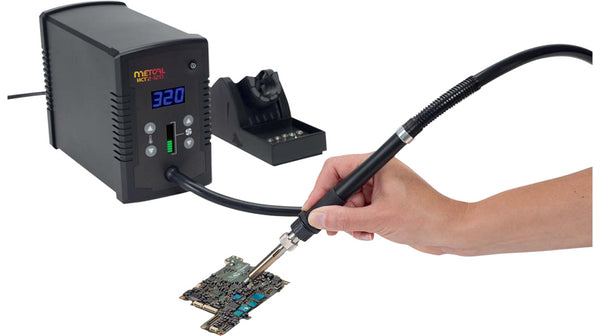

The Metcal HCT2-200-11 is a digital hot air pencil ideally suited for light rework applications which use smaller components and integrated circuits. The HCT2-200 was developed for very small surface mount component and package sizes (1206’s and smaller) and low board densities. For denserPCBA’s or applications with heavy copper planes, boards > 4 layers, or components larger than 5mm2

Metcal HCT2-200-11 Digital Hot Air Pencil Convection Tool Highlights:

• Ceramic Heater and Dual Stage Air Pump:Provides the power and performance needed to deliver the right amount of thermal energy
• Digital Airflow & Temperature Controls: Two LED displays provide a graphical and numerical representation of the desired airflow and temperature
• Fast response & Performance: A closed loop feedback system provides fast heating. precise and stable temperature control
• Standby mode: When the hand-peice is placed into the workstand, the temperature will drop prolonging heater life
• Replaceable Hand-Piece: The hand-piece is placed into the workstand, the temperature will drop prolonging heater life
• Ergonomic & Light Weight Hand-Piece:Slim and ergonomic design hand-piece that feels like a pencil, with a rubber grip
• Easily Change Heaters, Nozzles, and Hand-Pieces: All can be changed in moments
• Nozzles: Six nozzles (1.5mm - 4.0 mm) are included in the unit with a nozzle plate holder inside the workstand

Metcal HCT2-200-11 Digital Hot Air Pencil Convection Tool Specs:

• Brand: Metcal
• SKU: HCT2-200-11
• Ambient Operating Temperature: 10 to 40 °C
• Input Line Voltage: 110 VAC, grounded circuit
• Input Line Frequency: 50/60 Hz
• Rated Power: 200W
• Air Flow: 1.5 – 7.0 LPM
• Noise Level: Typically under 52dBA at max airflow
• Output Temperature Range: 100°-450°C
• Temperature Stability: 10% of display value ( > 250°C)
• Certifications/Markings: cNRTLus, CE, RoHS + WEEE
• Surface Resistivity: 105 O -109 O /sq
• Power Supply Dim. w x d x h: 10.6 cm (4.2”) x 21.3 cm (8.4”) x 17.0cm (6.7”)
• Workstand Dim. w x d x h: 7.6 cm (3.0”) x 16.8 cm (6.6”) x 8.6 cm (3.4”)
