The dosing system DX-350/DX-355 offers the possibility to save up to 10 dispensing profiles. Time, pressure and adjustable vacuum suck-back are displayed digitally. The device is intuitive to use and offers a high level of accuracy for line or point dispensing. An infinitely vacuum suck-back prevents low-viscosity media from dripping between the dosing cycles and high viscosiy media from pulling threads. The set value is displayed digitally. A RS-232 interface enables connection to a PLC. The system is delivered ready for operation. The dispensing system is available in two versions: Working pressure from 0 - 6.9 bar for common applications (DX-350). Working pressure adjustable via precision valve from 0 - 1 bar for low-viscosity media (DX-355).

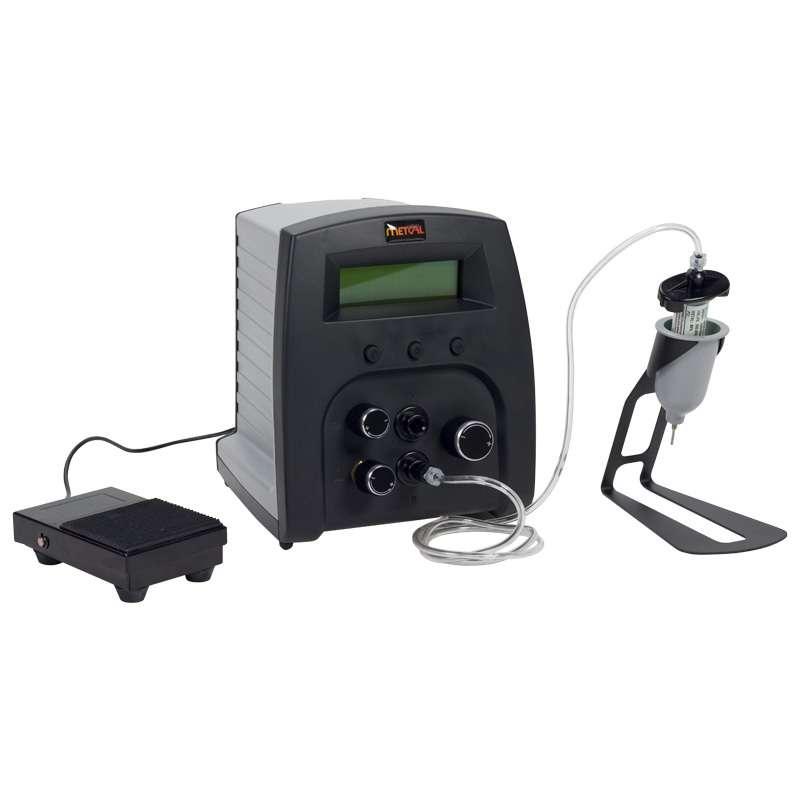

Metcal DX-350 Fluid Dispensing Programmable Digital Dispenser Highlights:

• Universal power supply with snap-on plug for worldwide use
• User programmable manual purge and automatic dispense cycle settings (program and time)
• 10 programmable memories for storing and recalling most frequently used dispensing cycle timing
• Teach Mode for determining the dispensing time required when dispensing output is unknown
• Digital pressure and vacuum readout
• Adjustable vacuum-driven suck back to control material tailing and waste
• Tactile-responsive user programming buttons
• Large, clearly marked air pressure and vacuum control knobs
• Digital Pressure and vacuum display with dual units
• High visibility, 20 x 4 LCD display panel with back lighting

Metcal DX-350 Fluid Dispensing Programmable Digital Dispenser Specs:

• Brand: Metcal
• SKU: DX-350
• Input Voltage: 100 - 240 VAC, 50/60 Hz
• Operating Pressure: 0 - 6.9 bar (0 - 100 psi)
• Vacuum Suck-Back Control: Steplessly variable
• Timing Tolerances: +/- 0.001 %
• Size (W x L x H): 152 x 165 x 1787 mm (6" x 6.5" x 7")
• Weight: 1.2 kg ( 2.6 lb)
