Metcal CVC-7VG0032A V-Groove Cartridge Chisel are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges, 600-series nominally 330˚C, 700-series nominally 390˚C, 800-series nominally 440˚C and 900-series nominally 470˚C. The temperature/series is designated by the by the first digit in the numerical part of the part number e.g. 600 will all be CVC-/SMC-0xx, 700-series will be CVC-/SMC-7xx, 800-series will be CVC-/SMC-8xx and 900-series will be CVC-/SMC-9xx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal SmartHeat-Technology automatically adjusts power levels during each soldering operation.

MetcalMetcal CVC-7VG0032A V-Groove Cartridge Chisel Highlights:

• Chisel soldering cartridge with V-groove for pin soldering

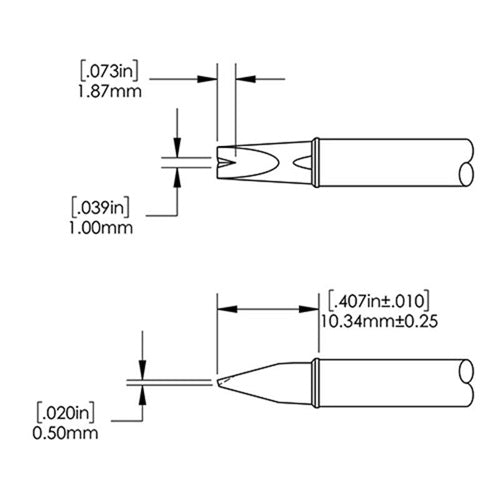

• Groove Size (W x L): 1.0 x 3 mm
• Tip Size (W x L): 3.2 x 10.35 mm (.12" x .41")
• Connection Validation enabled to ensure excellent solder joint
• For use with MX-RM3E, MX-RM6E, MX-H1-AV, MX-H7-SF and CV-H1-AV, CV-H7-AV hand-pieces
• Compatible with MX-500, MX-5000, MX-5200 and CV-5200, CV-500 Systems
• 700 Series heater ideal for most standard applications up to 775 °F (413 °C)

Metcal CVC-7VG0032A V-Groove Cartridge Chisel Specs:

• Brand: Metcal
• SKU: CVC-7VG0032A
• Product Type Soldering Tips
• Series: CVC
• Temperature Rating (Max.): 775°F (412°C)
• Tip Style: Chisel with V-Groove
• Tip Width: 0.12" (3mm)
• Tip Length: 0.41" (10.35mm)
