The Metcal CV-5210 Connection Validation Soldering Station features an embedded, self-regulating heater that delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required. The CV-5210 also features an intermetallic compound thickness that is critical in the formation of a solder joint. Connection Validation (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the hand-piece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measureable standard to the soldering process.

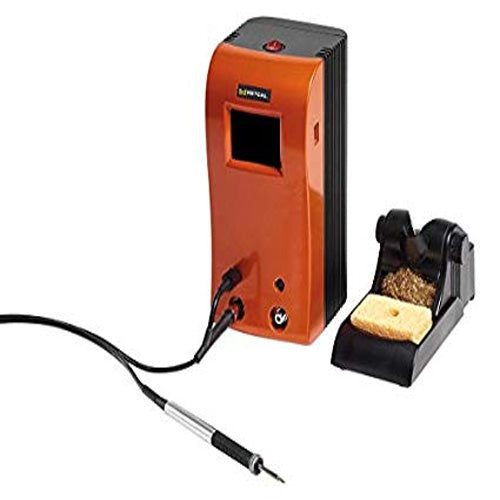

Metcal CV-5210 Connection Validation Digital Soldering Station Highlights:

• SmartHeat Power on Demand Technology
• Patented Connection Validation IMC Formation Technology
• 2.8" color touchscreen with bold graphics
• Communications Port for process traceability data and firmware graphics
• Precise tip temperature display
• Integrated Net Power Meter and power graph
• Patented Chip-in-Cartridge technology
• Indented: Closed loop bi-directional communication
• Can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed
• Configured with the Metcal Advanced Soldering and Rework Hand-piece
• Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders
• Improved ergonomics with lightweight hand-pieces
• Greater process control with SmartHeat Technology
• ESD-safe with incoming AC ground monitoring circuitry
• Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation
• Metcal TipSaver Workstand improves tip life with its “Auto-Sleep” function
• Indented: Stores and records cartridge attributes
• Indented: Provides traceability information
• Indented: Protects power supply from non-conforming cartridges
• Indented: Backwards compatible with MX series power supplies
• Password protection

Metcal CV-5210 Connection Validation Digital Soldering Station Specs:

• Brand: Metcal
• SKU: CV-5210
• ESD-Safe: Yes
• Series: CV-5200 Series
• Product Type: Soldering Station
• Applications: Solder Joint Through The Use of Smartheat Technology
• Power Rating: 125 W
• Input Voltage Rating: 100 to 240 V ac
• Maximum Operating Temperature: +40 °C
• Minimum Operating Temperature: +10 °C
• Cord Length: 72 in
• Dimensions: 121 mm (W) x 130 mm (D) x 235 (H) mm
• Length: 0.01 in.
• Width: 0.01 in., 121 mm
• Height: 0.01 in.
• Includes: CV Power Supply;CV-H1-AV: Advanced Hand-Piece with Integrated LED Light;MX-W1AV: Tip Saver Workstand
• Standards Met: CE Certification;TUV Marking;Meets IPC J-STD-001
