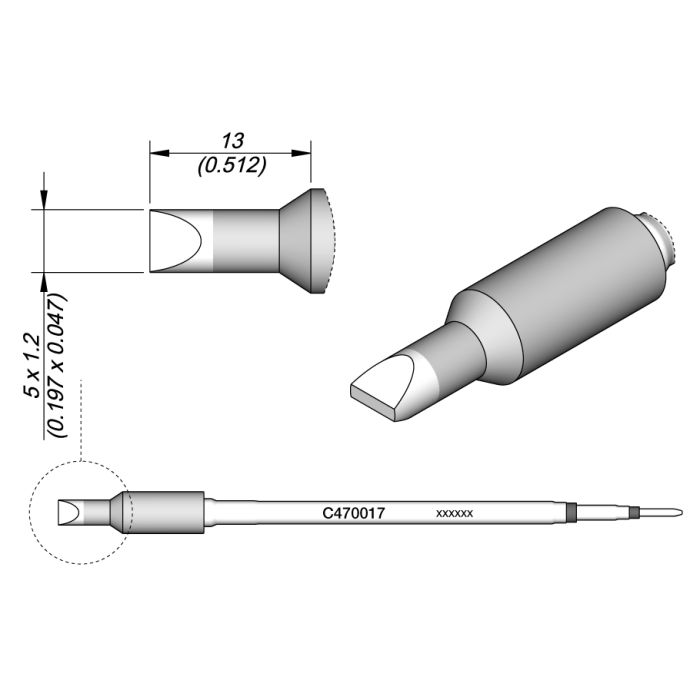

The C470-017 is a C470 Series Chisel Tip Cartridge. The C470 Series tip are compatible with the T470-A, T470-SA, T470-ZA or T470-FA Heavy-Duty Solder Irons. Due to the tips large size, these cartridges are ideal for intensive soldering applications and are perfect for both SMD and high-power requirements. The C470-017 cartridge measures 0.197" (5mm) wide x 0.047" (1.2mm) thick x 0.512" (13mm) long.

JBC C470017 Chisel Cartridge Soldering Tip Highlights:

• C470 cartridges are the largest ones of the JBC range
• Due to their size, these cartridges are appropriate for intensive soldering purposes and they are perfect for both SMD and applications with high power requirements
• Works with T470 Handpieces
• JBC Long Life Tips offer instant heat up, excellent heat transfer and great durability

JBC C470017 Chisel Cartridge Soldering Tip Specs:

• Brand: JBC Tools
• SKU: C470017
• Style: Chisel
• Tip Width: 0.197" (5mm)
• Tip Thickness: 0.047" (1.2mm)
• Tip Length: 0.512" (13mm)
