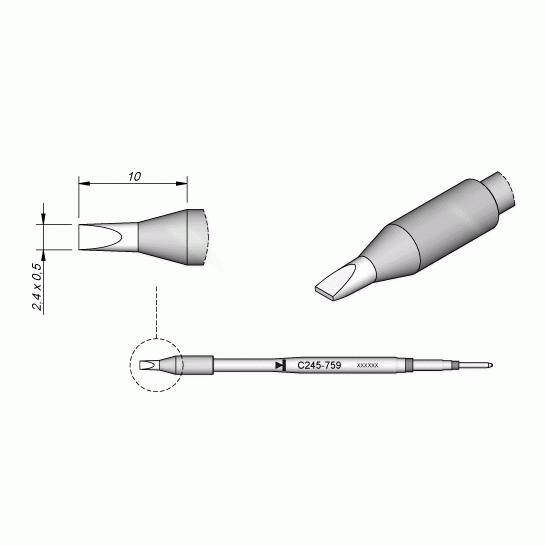

The C245-759 is a C245 Series Solder Tip Cartridge. This tip features a Chisel shape, ideal for general soldering applications and SMD components. The C245-759 cartridge measures 0.094" wide x 0.019" thick x 0.394" long (2.4 x 0.48 x 10mm). This tip is constructed with High Thermal Efficiency, each cartridge is characterized by their optimized tip geometries which achieve thermal efficiencies of up to 40%. The C245 Series cartridges are designed for use with the T245-A, T245-PA and T245-NA Soldering Irons.

JBC C245759 Chisel Cartridge Soldering Tip Highlights:

• C245 cartridge range is JBC's widest one, with many shapes, sizes and special models
• Appropriate for general soldering purposes and they are perfect for both SMD components or for applications with high power requirements such as ground plane soldering
• Works with T245 Handpieces
• JBC Long Life Tips offer instant heat up, excellent heat transfer and great durability

JBC C245759 Chisel Cartridge Soldering Tip Specs:

• Brand: JBC Tools
• SKU: C245759
• Product Type: Soldering Tip
• Style: Chisel
• Tip Width: 0.094" (2.4mm)
• Tip Thickness: 0.019" (0.48mm)
• Tip Length (Working Distance): 0.394" (10mm)
