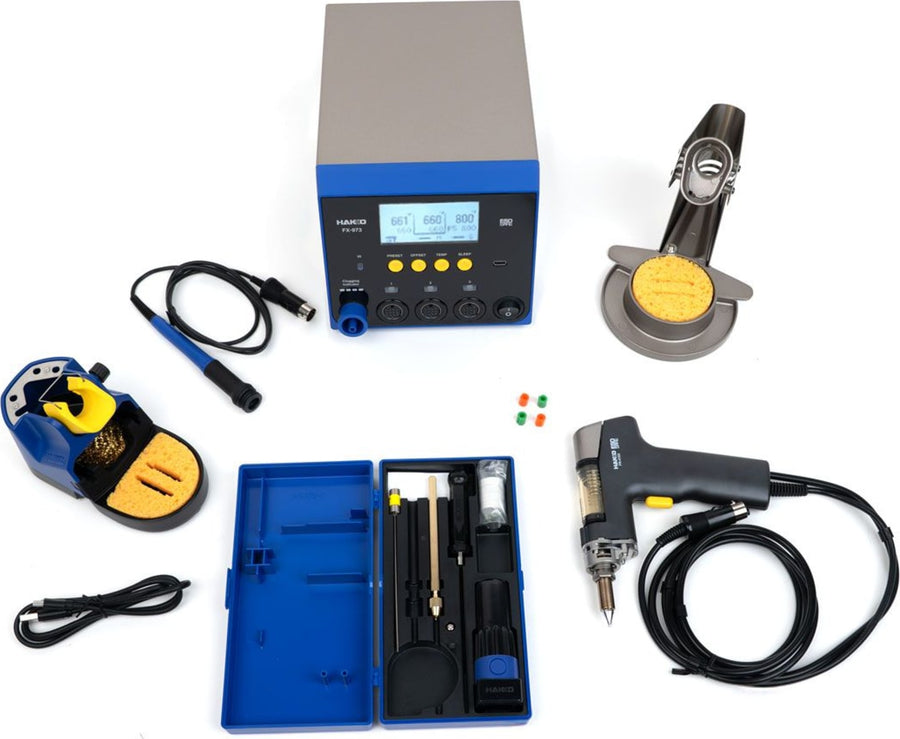

    Hakko FX973-010 Three Channel Rework Station with FX-9701 Iron and FR-4103 Gun Style Desoldering Tool

    Vendor: HAKKO Type: Desoldering Stations
    SKU: HAKFX973-010
    $2,111.17

    Not in stock. Available to order.

    We don't currently have this item in stock, but we can order it for you. Manufacturer lead times vary by product. For a delivery estimate before you order, email sales@technimark-inc.com or call (847) 639-4700.

    View Full Details
    1 / 1
    Press & drag to view
    Product DetailsFAQsRelated ProductsRecently Viewed

    Hakko FX973-010 Three Channel Rework Station with FX-9701 Iron and FR-4103 Gun Style Desoldering Tool

    The HAKKO FX-973 3-Port Rework Station delivers 400W (max) of high-performance for modern electronics rework. Supporting up to 10 handpieces with a wide temperature range, it features an integrated vacuum pump and is compatible with the FR-4103/4104 desoldering tools.

    Available Packages

    Hakko offers the FX-973 both in packages with additional handpieces, as well as on its own for users seeking to build a configuration for their particular application.

    The chart below provides a brief overview of the main components in each. Please see the “In the Box” section for more detailed information. The FR-4103 is a gun-style desoldering handpiece. The FR-4104 is the pencil-style desoldering handpiece.


    		 Station FX-9701 FR-4103 FR-4014
    FX973-011 x


    FX973-010 x x x
    FX973-013 x x
    		x



    Tips and nozzles

    The FX-9701 soldering iron uses T39 tips (sold separately).

    The desoldering handpiece uses N61 series nozzles and includes one N61-05 (1.0mm).

    Desoldering tool maintenance kit Included!

    This package includes a maintenance kit to keep your desoldering handpiece unclogged and in top working condition. The maintenance kit includes the following:

    • B1087 - 1.0mm Cleaning Pin
    • B1215 - Heating Cleaning Pin
    • B1303 - 1.0mm Cleaning Drill
    • B5106 - Nozzle Wrench
    • A5077 - Station Filter (x2)
    • A5044 - Handpiece Filter (x4)

    Compatible handpieces

    The FX-973 is compatible with several handpieces, including standard, micro, and heavy-duty irons, as well as tweezer and nitrogen-compatible tools.

    Note: this package includes the FX-9701 and FR-4103. Additional handpieces are sold separately.

    Model Tip series  Description  Nitrogen
    FX-9701 T39 Standard iron  No
    FX-9702 T39 Standard iron  Yes
    FX-9703 T50 Micro iron  No
    FX-9704 T50 Micro iron  Yes
    FX-9705 T51 Rework tweezer  No
    FX-9706 T52 Micro tweezer  No
    FX-9707 T53 Heavy-duty iron  No
    FX-9708 T53 Heavy-duty iron  Yes
    FR-4103 N61 Desoldering iron - gun style No
    FR-4104 N61 Desoldering iron - pencil style No



    Wireless IR auto-cal

    The FX-973 works seamlessly with the FG-100/101B Tip Thermometer (sold separately) for measuring tip temperature and automatically offsetting the temperature on the station.

    Hakko FX-973 Specs:

    • Three channel rework station
    • Soldering and desoldering (vacuum) functionality
    • Includes FX-9701 soldering iron (uses T39 tips - sold separately)
    • Includes FR-4103 gun style desoldering iron (uses N61 nozzles - includes one N61-05)
    • Compatible with several other handpieces for added versatility (see below for more information)
    • 400W total power
    • Memory for five presets
    • Contains an internal pump - shop air NOT required for airflow
    • USB-C connectivity for use with Hakko Control software
    • This system does not have hot air functionality (please see FR-850 hot air station)
