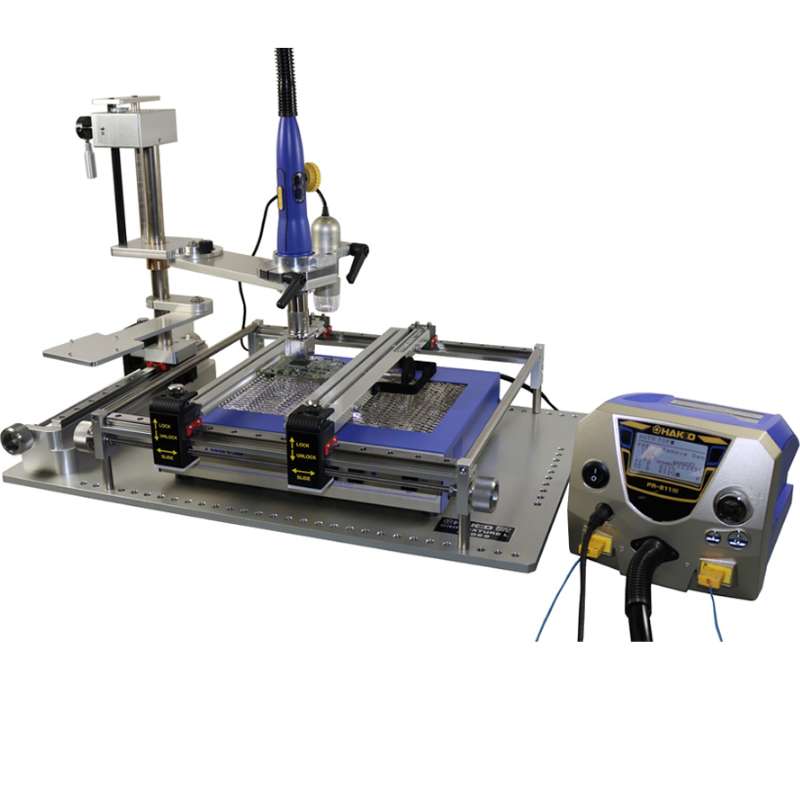

The HAKKO FR-811 can be transformed into a complete SMD rework system with these added accessories:

• C5016 bottom heater, which integrates with and is fully controlled by the FR-811 allowing it to be incorporated into the various heating profiles set by the FR-811
• C5027 board holder
• C5029 handpiece fixture

These added accessories add functionality and features that provide stabilization for accuracy when reworking small or difficult components. The C5027 board holder and C5029 handpiece fixture feature a "one-touch" slide adjustment for quick and easy adjustments, and knobs for fine x-y adjustments. For smaller components, the FR811-SET also includes the HAKKO Basic Vision Kit (PN: 999-267 ) that incorporates a Dino-Lite microscope camera for visual alignment (attachment bracket to the C5029 handpiece fixture included.) For features and benefits of the FR-811 SMD rework system, see part number FR811-04 .

• These added accessories add functionality and features that provide stabilization for accuracy when reworking small or difficult components.

• The C5027 board holder and C5029 handpiece fixture feature a "one-touch" slide adjustment for quick and easy adjustments and knobs for fine x-y adjustments.

• For smaller components, the FR811-SET also includes the HAKKO Basic Vision Kit (PN: 999-267) that incorporates a Dino-Lite microscope camera for visual alignment (attachment bracket to the C5029 handpiece fixture included.)

• For features and benefits of the FR-811 SMD rework system, see part number FR811-04

• New graphic interface display and navigation system that simplifies operation
• Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process
• Automatic mode gives users the ability to fully program profiles with up to 6 stages
• Onboard storage of up to 50 profiles with an external USB port for flash drive memory for storage of profiles
• A dedicated USB port can also be used to integrate the FR-811 with a PC using the included software
• Integrated vacuum pickup with a visual indicator in the handpiece that indicates when the component has been completely reflowed
• ESD-Safe
