Hakko FM204-CP Self-Contained Desolder & Soldering Station with FM-2024 Desolder Tool & FM-2027 Soldering Iron

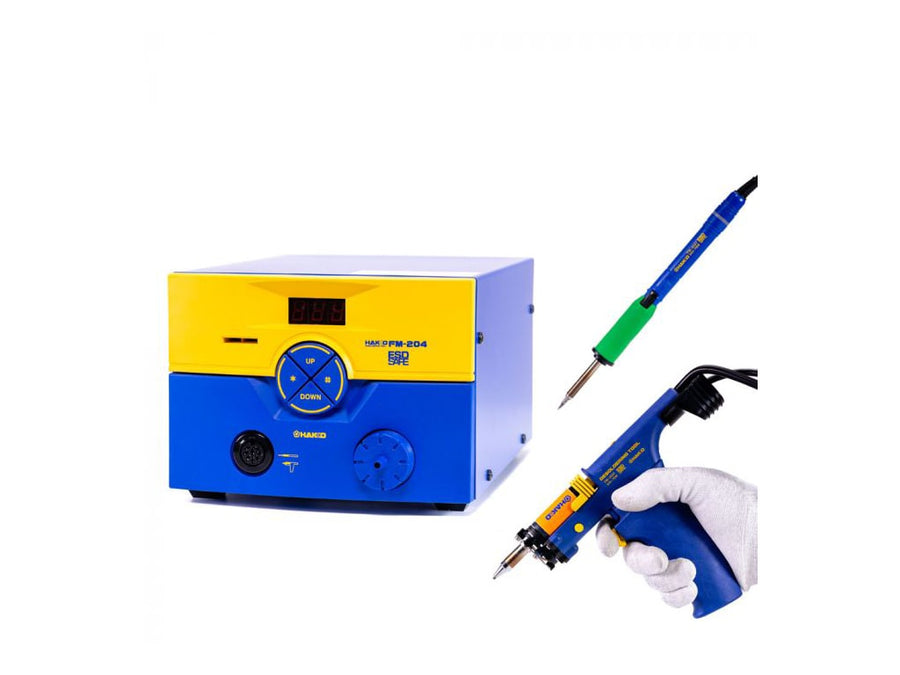

The HAKKO FM-204 Desoldering and Soldering Station is a self-contained station with a built-in vacuum pump. This single port station has both the functionality for soldering and desoldering with a gun or pencil style desoldering handpiece. Utilizing N3 nozzles for a quick change process makes interchanging nozzles fast and convenient.
Hakko FM204-CP Self-Contained Desolder & Soldering Station Highlights:
- Built in vacuum pump
- Meets or exceeds J-STD-001 requirements
- Temperature range 400 °F - 840 °F / 200 °C - 450 °C
- Temperature Stability ±9 °F / ±5 °C at idle temperature
- Quick-change composite nozzles (N3 series)
- Handpiece converts to either gun or pencil style
- Placing the iron into the iron holder activates the sleep mode
- Can be used for soldering with the FM-2027 soldering iron (not included)
Hakko FM204-CP Self-Contained Desolder & Soldering Station Specs:
- Brand: Hakko
- SKU: FM204-CP
- Series: FM-204
- Product Type: ESD Desoldering Station
- Applications: Desoldering
- Power Rating: 120 70W
- Output Voltage Rating: 24V ac
- Maximum Operating Temperature: +450°C
- Minimum Operating Temperature: +350°C
- Pressure Rating: 80kPa
- Iron Length: 180mm
- Cord Length: 1.2m
- Tip to Ground Resistance: <2 ohms
- Dimensions: 225 x 160 x 120mm
- Length: 225mm
- Width: 160mm
- Height: 120mm
- ESD Safe (Yes/No): Yes
- Standards Met: RoHS Compliant
