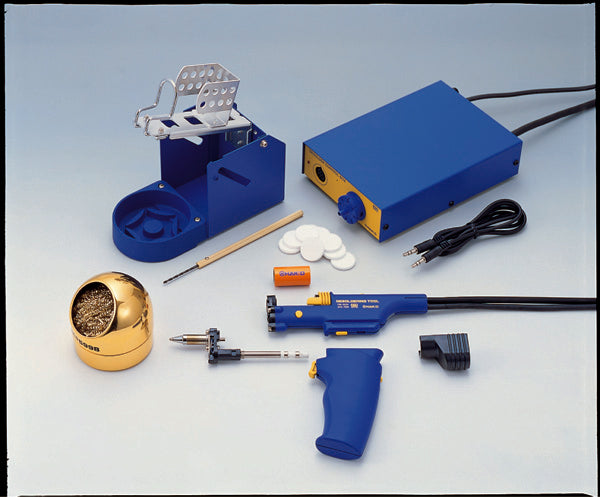

The Hakko FM-2024 desoldering module gives you a complete soldering and desoldering solution in one module. The configurable handpiece uses quick-change composite nozzles and allows you to choose either a gun or pencil style handpiece. The Hakko FM-2024 Desoldering Module extends the versatility of the award winning Hakko FM-202 or the new FM-203 Soldering Station giving you a complete soldering and desoldering solution, in one modular station.

• FM-2024 DESOLDERING MODULE
• The Hakko FM-2024 Desoldering Module extends the versatility of the award winning Hakko FM-202 or the new FM-203 Soldering Station giving you a complete soldering and desoldering solution, in one modular station.
• NOZZLE/TIP HEATER CARTRIDGE
  Building on Hakko's revolutionary composite tip technology, the desoldering nozzle/tip heater cartridge assembly offers a one-step, quick-change design with fast thermal recovery; the enlarged throat and shortened nozzle design is virtually non-cloggable, making it ideal for NO LEAD applications; and its slender body enables it to reach those difficult-to-reach component pads on densely populated boards.
• GUN TO PENCIL CONFIGURATION
  The Hakko FM-2024 also features an extremely lightweight, reconfigurable handpiece that allows the user the option to use the tool as either a gun or pencil style handpiece by simply removing or adding the Handle.

• Brand: Hakko
• SKU: FM2021-21
•  Power Consumption: 12W
•  Output: 24V
•  Vacuum Generator: Ejector type
•  Vacuum Pressure (max): 93 kPa (700 mmHg) (28in. Hg)
•  Suction Flow: 20 l/min.
•  Tip to Ground Potential: < 2 mV
•  Applied Air Pressure: 490 kPa (71 PSI) when in use (trigger is pressed)
•  Compressed Air Consumption: 1.62 cfm (46 l/min.)
•  Outer Dimensions (w/o cord) : 119(W) x 45(H) x 172(D) mm 4.7(W) x 1.8(H) x 6.8(D) in.
•  Weight: 1.2 kg (2.6 lbs.
