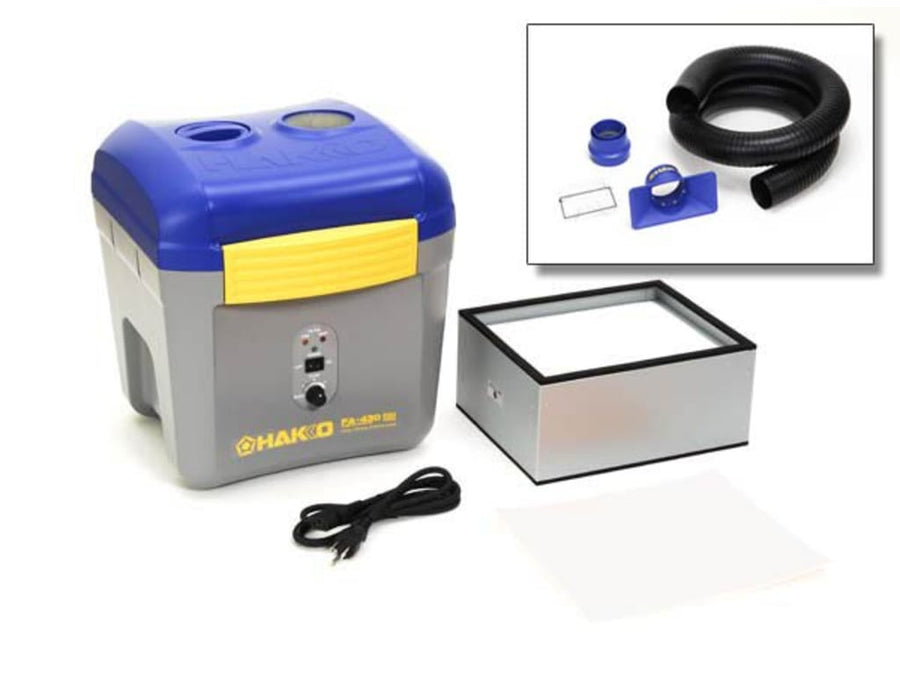

The Hakko FA430-Kit1 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. The C1571 kit includes filter and duct kit with rectangular nozzle. The three stage filtering system returns purified air to the area. Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA430-Kit1 is located. The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

• Product Type: Smoke Absorber Kit
• Includes C1571 Nozzle
• Designed for use at soldering stations where it extracts contaminated air directly from the source
• Powerful suction, quiet operation
• 3-airflow adjustment modes: High, Medium, Low
• Free standing ducts
• Standards Met: cMETus
• HEPA filter made from fiberglass paper medium and provides the greatest amount of surface area within the volume of the filter case
• Filter efficiencies are greater than 98% at 0.3 microns
• Special filter replacement notification function detects the fan speed and notifies the operator of the appropriate time to replace the filters via indicator lights on the front panel

The Hakko FA430-Kit1 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. The C1571 kit includes filter and duct kit with rectangular nozzle. The three stage filtering system returns purified air to the area. Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced. Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA430-Kit1 is located. The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case. The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

HAKKO FA430-KIT1 Smoke Absorber Kit Highlights:

• Product Type: Smoke Absorber Kit
• Includes C1571 Nozzle
• Designed for use at soldering stations where it extracts contaminated air directly from the source
• Powerful suction, quiet operation
• 3-airflow adjustment modes: High, Medium, Low
• Free standing ducts
• Standards Met: cMETus
• HEPA filter made from fiberglass paper medium and provides the greatest amount of surface area within the volume of the filter case
• Filter efficiencies are greater than 98% at 0.3 microns
• Special filter replacement notification function detects the fan speed and notifies the operator of the appropriate time to replace the filters via indicator lights on the front panel

HAKKO FA430-KIT1 Smoke Absorber Kit Specs:

• Brand: HAKKO
• SKU: FA430-KIT1
• Power Rating: 120W
• Voltage Rating: 120V ac
• Pressure Rating: 1500Pa
• Filter Type: Pre-Filter; Main Filter
• Noise Level: 44 to 53  1 mdBA
• Airflow Rate: Single Duct:145; Two Duct:167cfm
• Dimensions: 13.0 L x 13.5 W x 14.4 Hin
• Length: 25.0 in
• Width: 21.65 in
• Height: 22.25 in
