    HAKKO DP-23-N Depaneling Tool

    Vendor: HAKKO Type: PCB Depaneling
    SKU: HAKDP-23-N
    $30.87 $32.72

    Available to Order

    Ships in 3–5 business days.

    View Full Details
    • HAKKO DP-23-N Depaneling Tool
    • HAKKO DP-23-N Depaneling Tool
    1 / 1
    Press & drag to view
    Product DetailsFAQsRelated ProductsRecently Viewed

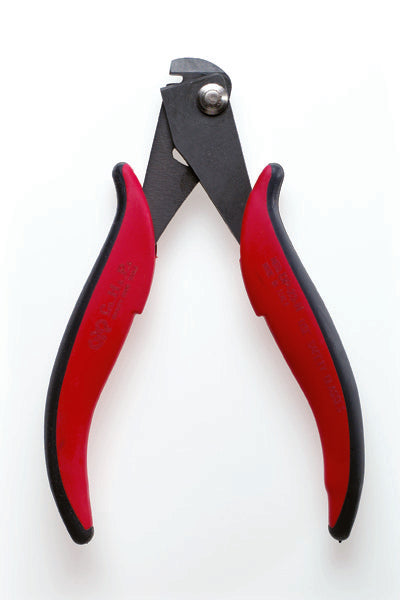

    HAKKO DP-23-N Depaneling Tool

    The Hakko CHP DP-23-N printed circuit board (PCB) depaneling tool is used to separate PCBs in multiple circuit board production. The tool has a 2.3mm width and can be used with boards with an isthmus (tab) up to 2.5mm. The 40kg cutting force uses a shearing action to prevent delamination of the board material during separation. Heat-treated carbon steel construction provides durability and long life. The tool has precision-ground holes and surfaces that provide precise movement. Nonslip hand grips provide comfort and control, and a dolphin-style curved fore-edge protects hands from cutting surfaces. Parkerized surfaces prevent glare and increase corrosion resistance.

    HAKKO DP-23-N Depaneling Tool Highlights:

    • Depaneling tool separates printed circuit boards (PCB) in multiple circuit board production
    • 2.3mm width
    • 2.5mm isthmus (tab) cut
    • 40kg cutting force uses shearing action to prevent delamination of the board material
    • Dolphin-style nonslip hand grips provide comfort and control, and curved fore-edge protects hands from cutting surfaces

    HAKKO DP-23-N Depaneling Tool Specs:

    • Brand: HAKKO
    • SKU: DP-23-N
    • Weight: 3.20 ounces
    • Width: 2.3 mm
    • Cutting Force: 7 kg
    • Material: Carbon Steel

    HAKKO DP-23-N Depaneling Tool Highlights:

    • Depaneling tool separates printed circuit boards (PCB) in multiple circuit board production
    • 2.3mm width
    • 2.5mm isthmus (tab) cut
    • 40kg cutting force uses shearing action to prevent delamination of the board material
    • Dolphin-style nonslip hand grips provide comfort and control, and curved fore-edge protects hands from cutting surfaces

    HAKKO DP-23-N Depaneling Tool Specs:

    • Brand: HAKKO
    • SKU: DP-23-N
    • Weight: 3.20 ounces
    • Width: 2.3 mm
    • Cutting Force: 7 kg
    • Material: Carbon Steel
    Product Specifications
    Manufacturer part number DP-23-N
    Technimark sku HAKDP-23-N
    Documents
    User Manual Download
    Specification Sheet Download
    Safety Guide Download
