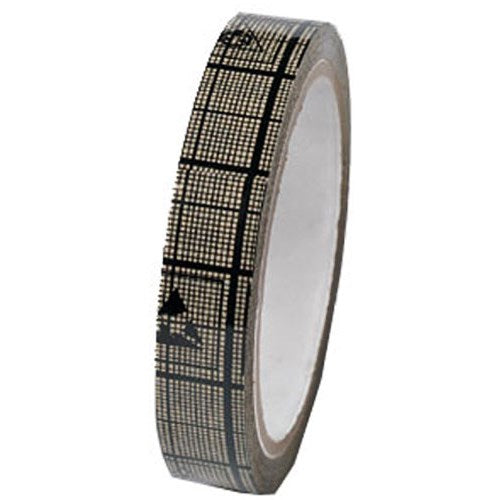

The Desco 81252 Antistatic Shielding Grid Tape, 1 in. x 118 ft., 3 in. Paper Core combines a conductive shielding layer with a high-tack rubber adhesive that generates less than 50 volts when unwound, to protect ESD sensitive materials in transit. The conductive layer creates a Faraday cage effect around the item, and the grid markings offer improved visual identification.

Desco 81252 Antistatic Cellulose Conductive Shielding Grid Tape Highlights:

• Low charging transparent cellulose film (2.4 Mils Thick) with high-tack rubber adhesive
• Generates less than 50 volts when unwound from roll (at 73°F, 45% RH average) making it safe to use around most ESD sensitive items
• Conductive shielding layer (1 x 104 to < 1 x 106 ohms) marked with ESD Symbols (MIL STD 1285 and ESDA)
• For use in creating a Faraday Cage to provide static shielding of an ESD sensitive item
• Surface Resistance 1 x 108 to < 1 x 1011 Ohms
• Tested per ANSI/ESD S11.11 to meet dissipative limits of
• packaging standard ANSI/ESD S541
• Temperature Range 10°C - 71°C (14°F - 140°F)
• Meets MIL-B-81705 for exposure to 100°C for 10 minutes max
• Lead-Free RoHS Compliant

Desco 81252 Antistatic Cellulose Conductive Shielding Grid Tape Specs:

• Brand: Desco
• SKU: 81252
• Product Type: Conductive Grid Tape
• Printed: Yes
• Adhesive Material: Acrylic
• Backing Material: Cellulose Film
• Color: Natural
• Length: 3.65 in
• Width: 1in, 3.65 in
• Height: 1.0 in
• Thickness: 1.9mil
• Applications: ESD Conductive
• Maximum Operating Temperature: +140°F
• Minimum Operating Temperature: +14°F
• Special Features: Anti-Static, ESD
• Adhesive Type: Acrylic
• Storage Conditions: 20C
• Standards Met: MIL STD 1285 and ESDA; ANSI/ESD S11.11; ANSI/ESD S541; Meets MIL-B-81705; RoHS Compliant
